What are the Advantages of MDC Cable?

MDC fiber patch cables are advanced miniature duplex fiber patch cord designed for high density data centers. Their compact VSFF design saves rack space, while the push pull connector allows easy installation and polarity changes. Factory pre-terminated fiber patch cords ensure low loss and reliable 400G/800G transmission, making MDC fiber patch cords an ideal choice for cloud and AI networks. In this article, we'll explore the advantages of MDC fiber patch cables in terms of space efficiency, performance reliability, operational flexibility,and application adaptability.



Space Efficiency: Delivering a 3x Increase in Cabinet Space Utilization

With an ultra-fine outer diameter of 1.25 mm and an integrated multi-core design, MDC fiber patch cords represent a quantum leap in rack space utilization. Compared to conventional fiber patch cables, MDC fiber patch cords achieve up to three times the density within the same 1U rack, accommodating 216 duplex connectors (432F), directly resolving the conflict between high connection demand and limited space in clusters with tens of thousands of cards.

This breakthrough not only reduces the cost on hardware such as racks and panels but also simplifies the cabling architecture, thereby lowering the physical complexity of subsequent operations and maintenance. Within limited cabinet space, MDC fiber patch cords support high-speed interconnections for more nodes, reserving ample interface resources for computing power expansion in AI data centers and avoiding the costs of architectural restructuring caused by space constraints.





Performance Reliability: Suitable for Complex Operating Environments

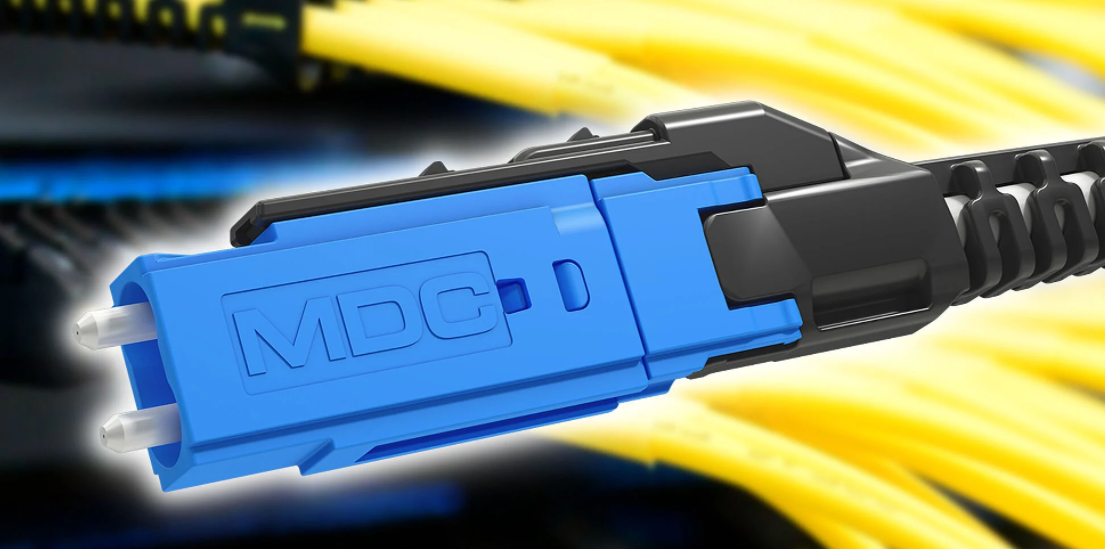

Although MDC fiber patch cords feature an ultra-compact design (approximately half the size of standard LC fiber optical patch cord connectors, with twice of ferrule density), they achieve reliability that exceeds industry standards through precision manufacturing and rigorous quality control, making them perfectly suited for the 7X24hours continuous operation requirements of AI data centers.



Attenuation Performance

Complies with the IEC 61753-1 Grade B random mating requirement; the average attenuation is as low as 0.12 dB, maximum attenuation of 97% of fiber optical patch cords are less than 0.25 dB, ensuring low-loss optical signal transmission.



Standards Compliance

Complies with GR-326 and TIA-568 industry standards and is compatible with mainstream global optical network architectures.

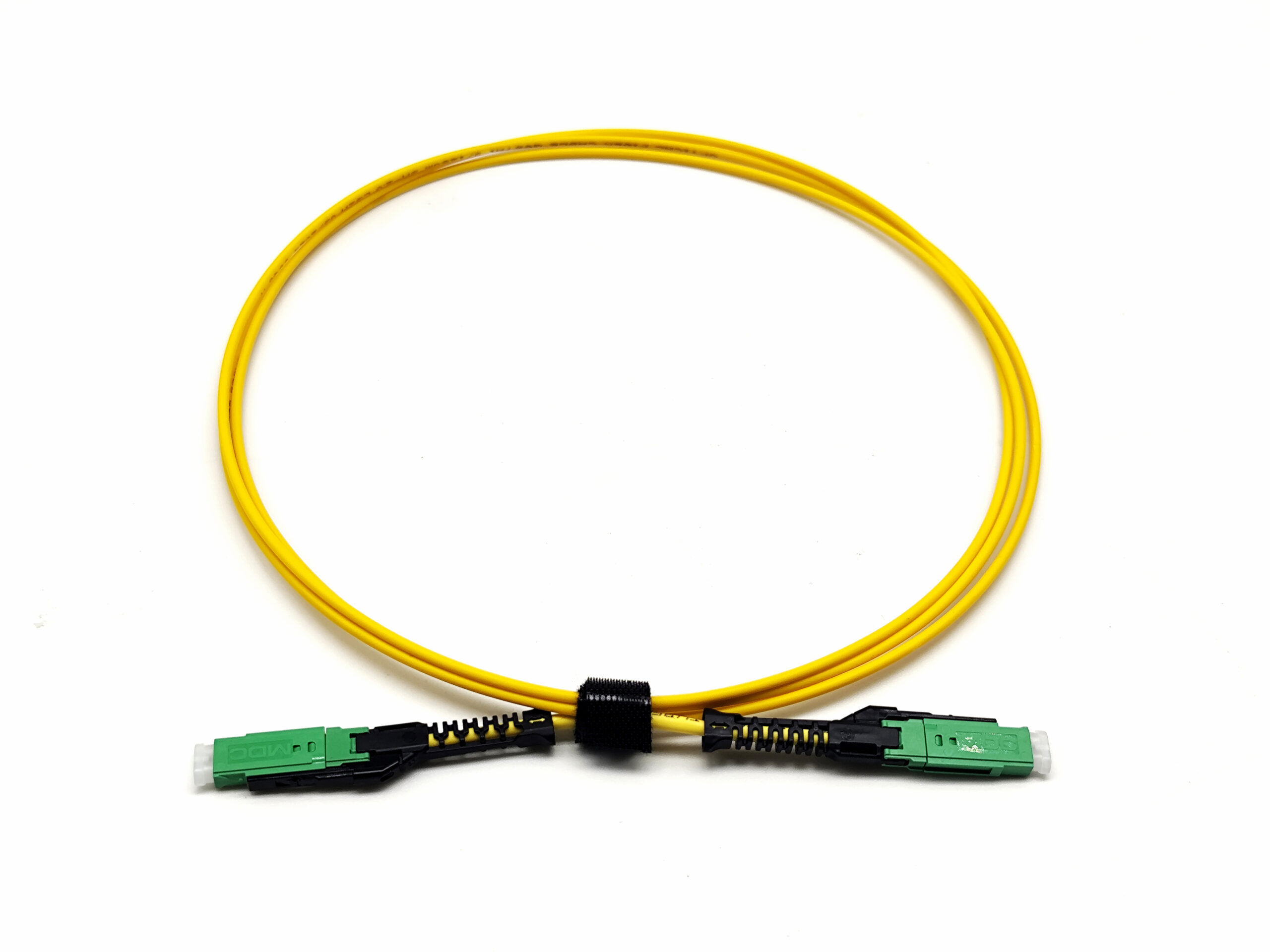

For high-precision optical transmission scenarios (such as the low-interference requirements of AI model training), MDC fiber patch cables are also available in an APC version; utilizing a unique reverse-angle ferrule design, the MDC fiber patch cords minimizes reflectance to extremely low levels, preventing signal interference at the source and ensuring the accuracy of highly sensitive data exchanges.





Operational Flexibility: Enhancing Cluster Management Efficiency

The core operational requirements for large-scale AI clusters are minimizing downtime and maximizing efficiency. MDC fiber patch cords solve the problems through two innovative designs.



Easy Maintenance

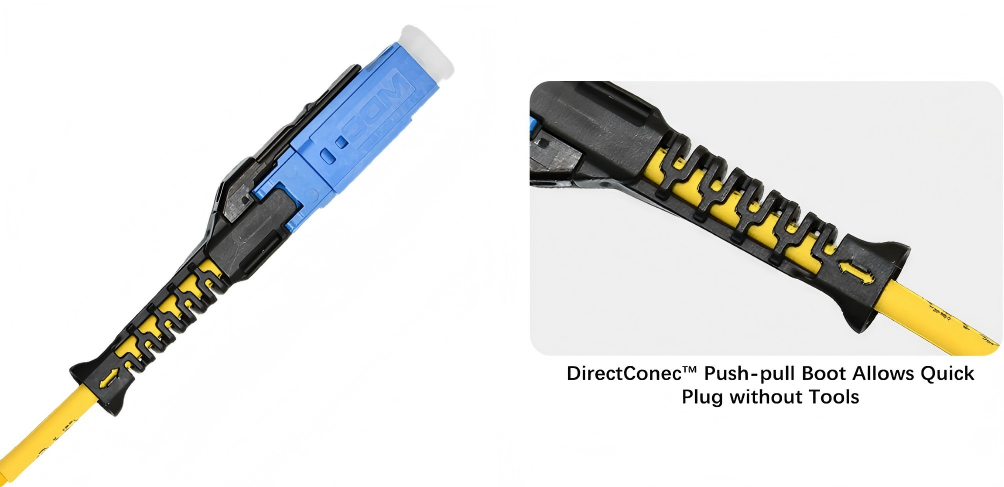

Equipped with DirectConec™ push-pull boots, installers can easily insert and remove MDC optical cord connectors in tight, compact cabinet spaces without coming into contact with adjacent connection links, enabling “single-cable maintenance without interrupting the entire system” and significantly reducing the risk of computing power interruptions caused by operations and maintenance. At the same time, the flexible boots of MDC fiber patch cord ensures that the fiber patch cable maintains an appropriate bending radius at all times, preventing damage from uaing and extending the fiber patch cables service life.





Polarity Reversal

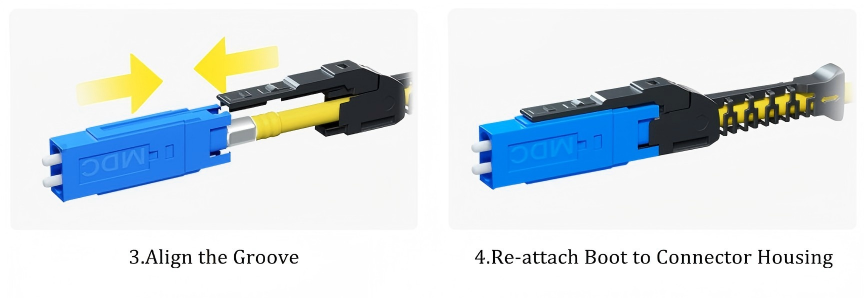

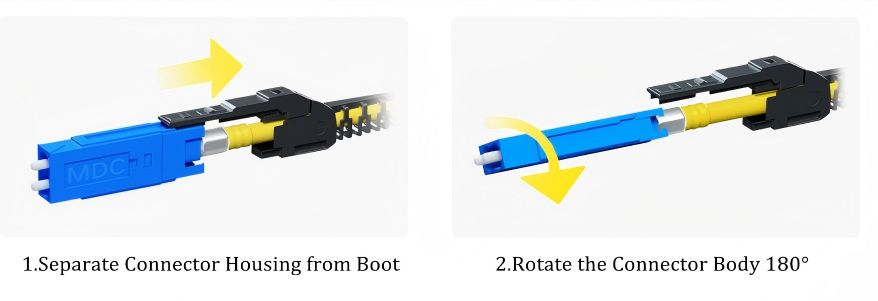

Polarity can be changed without exposing or twisting delicate optical fibers and can be completed in just three steps: remove the fiber patch cord connector housing from boot, rotate the boot 180°,and reassemble. The process is quick and safe. Polarity indicators and MDC markings on the top and sides of the optical cord connector clearly display the polarity status, preventing operational errors during maintenance.



Scenario Adaptability

In the current fiber patch cords connectivity market, conventional LC/SC fiber jumpers continue to deliver stable value in small- and medium-scale GPU clusters and traditional computing scenarios thanks to their standard 2.5mm outer diameter, mature standardization framework, and high compatibility with traditional optical cord cabling architectures. MDC fiber patch cords align with the operational practices of most data centers and precisely meet the needs of applications characterized by “stable computing demand and moderate node scale”, making MDC fiber patch cable a reliable choice in the field of optical connectivity today.



However, with the widespread adoption of 10,000-card-scale AI clusters, optical cord connectivity must overcome two core bottlenecks. One is space utilization, under traditional architectures, the port density of 1U cabinets struggles to support the multi-fiber fiber patch cord connections required for terabyte-level data exchange; Another is operational continuity, large-scale clusters place increased demands on “maintenance without service interruption”, and traditional operating models are prone to causing link interruptions. To address these evolving needs, MDC fiber patch cords fill this gap with their innovative design, emerging as the optimized solution for optical connectivity in large-scale AI clusters.





Conclusion

Whether it’s the need for stable connections in small- and medium-sized clusters or the demand for high density and low latency in clusters with tens of thousands of cards, we can provide customized solutions. MDC fiber patch cords are not just “connection cables”,they are “value-added cables” that empower the continuous evolution of AI data centers. UnitekFiber offers all kinds of MDC fiber patch cords,shop now at www.unitekfiber.com for more premium fiber optical patch cords.
