What Makes Breakout MPO/MTP Cables Indispensable for High Density Data Center Networks?

Breakout MPO/MTP cables are indispensable for high-density data center networks because they bridge the gap between high-speed parallel optics and individual legacy equipment, enabling seamless transitions from 10G/25G to 40G, 100G, and 400G speeds. By consolidating multiple fibers into a single connector on one end and splitting into discrete connectors (like LC or SC) on the other, these cables maximize switch port density and utilization while drastically reducing cable clutter and installation time.



What Are Breakout MPO/MTP Cables?

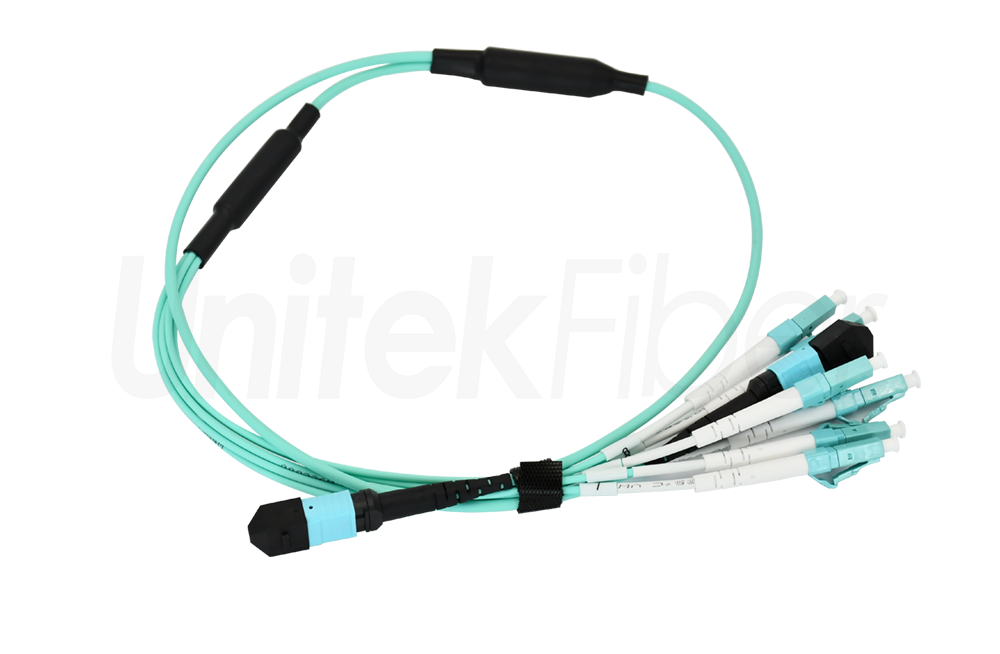

A breakout MPO/MTP fiber optic cable (also referred to as a fan-out or harness cable) is a high-density fiber assembly designed to bridge the connectivity gap between high-speed multi-fiber equipment and individual lower-speed device ports. Its distinctive structure features a single MPO/MTP connector on one end, which splits into multiple independent connectors on the other end.



Common Types of Breakout MPO/MTP Cables

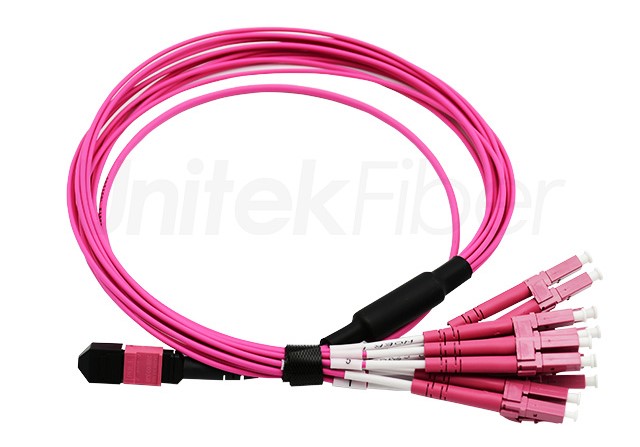

The most widely used configurations include MPO/MTP to LC, MPO/MTP to SC, and MPO/MTP to ST connectors, each adapted to different device interface requirements. These cables play a pivotal role in the migration of data center networks from 10G/25G speeds to higher bandwidths such as 40G, 100G, and 400G, laying the foundation for next-generation network upgrades.

Key Advantages of Breakout MPO/MTP Cables

Breakout MPO/MTP cables stand out from traditional single-fiber cabling due to their unique design and performance advantages, addressing the core pain points of high density network deployment.



High Density Design & Efficient Signal Transmission

The primary advantage of breakout MPO/MTP fiber optic cables lies in their high-density integration capability. Taking a 12-fiber breakout MPO/MTP cable as an example: one end integrates 12 fibers into a single MPO/MTP connector, while the other end splits into multiple independent LC or SC ports. This design can simultaneously support the transmission of four 10G signals or one 40G signal, maximizing port utilization.



Space Saving & Transmission Stability

Compared to traditional single-fiber cabling, breakout MPO/MTP fiber cables save over 60% of cabinet space, making them ideal for crowded data center environments. Additionally, through factory pre-termination and strict quality control processes, these cables ensure low insertion loss (≤0.5 dB per fiber) and high return loss (≥50 dB), guaranteeing stable and reliable signal transmission even in high-speed scenarios.



Anti-Interference & Durable Construction

In terms of material and structural design, breakout MPO/MTP fiber optic cables are engineered to withstand harsh operating environments. The adoption of a metal housing and electromagnetic interference (EMI) shielding layer effectively isolates electromagnetic disturbances common in industrial and data center settings, preventing signal degradation.



Environmental Adaptability

The MPO/MTP fiber cables’ outer jacket is made of high-performance materials with excellent resistance to extreme temperatures, abrasion, and flame retardancy. This allows them to adapt to diverse application scenarios, including indoor data centers, industrial automation facilities, and even outdoor cabling setups, significantly extending their service life and overall reliability.

Practical Applications of Breakout MPO/MTP Cables

With their high density, efficiency, and durability, breakout MPO/MTP optical cables have been widely adopted across various high-bandwidth, high-reliability network scenarios.

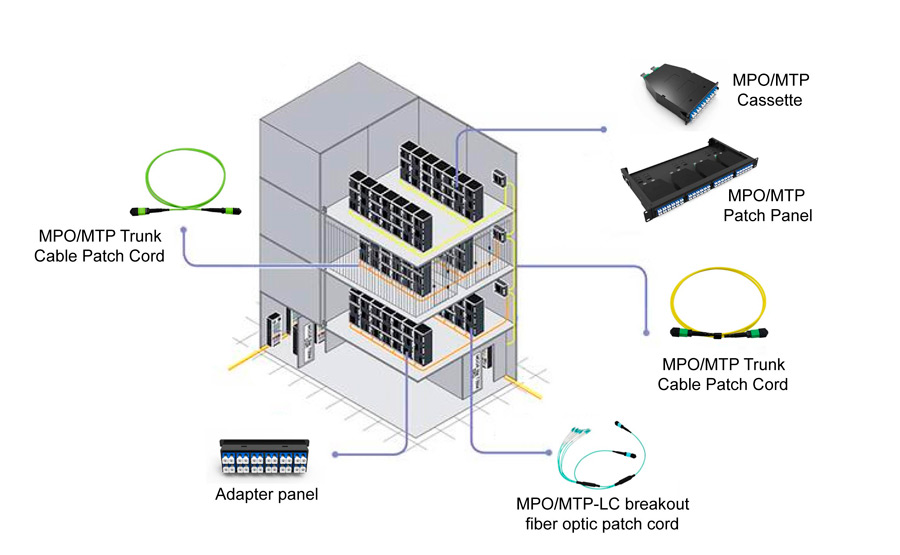

Data Center Core Layer Interconnection

In hyperscale data centers, breakout MPO/MTP cables are extensively used to connect core switches and aggregation switches, supporting high-speed transmission at 100G, 400G, and even 800G. For example, a leading cloud computing center employs 24-fiber breakout MPO/MTP optical cables to aggregate twelve 10G signals into three 40G signals, increasing port utilization by 300%. Its modular design also enables seamless upgrades from 40G to 100G, reducing infrastructure investment costs.



5G Fronthaul Network Deployment

In 5G base station deployments, breakout MPO/MTP fiber cables are responsible for transmitting 25G/50G signals between the Active Antenna Unit (AAU) and the Distributed Unit (DU). By using 8-fiber single-mode MPO-to-LC breakout cables, a 40G QSFP+ PSM4 signal can be split into four 10G SFP+ LR signals, meeting the low-latency requirements of 5G fronthaul while simplifying terminal cabling and reducing deployment time.



Medical Imaging & Research Laboratories

In high-precision application scenarios such as medical imaging and scientific research laboratories, the transmission of high-resolution images (e.g., CT, MRI scans) and massive scientific datasets requires networks with ultra-low latency, high bandwidth, and high reliability. Breakout MPO/MTP fiber optic cables enable high-speed parallel transmission across multiple channels, ensuring the stability and accuracy of data during transmission, which meets the stringent requirements of complex computing and real-time analysis.



Enterprise Core Data Centers & Campus Network Backbones

Within enterprise core data centers and campus network backbones, breakout MPO/MTP optical cables serve as trunk links, facilitating high-density interconnection between the core data center and satellite equipment rooms in different buildings. Their high-port-density design not only supports rapid network deployment and improves port utilization but also simplifies the overall cabling infrastructure, optimizing network management efficiency and reducing maintenance complexity.

Conclusion

Breakout MPO/MTP fiber optic cables have become a cornerstone of modern high speed, high density optical networks. UnitekFiber is a professional MPO/MTP fiber optic cables supplier, specializing in high-density, high-performance fiber interconnect solutions that facilitate the rapid deployment and stable operation of data centers, enterprise networks, and high-bandwidth applications. If you have any needs, feel free to contact us at sales@unitekfiber.com.
