What are the Type of Uniboot Fiber Optic Patch Cord?

A Uniboot fiber patch cord is an innovative fiber optic cable that integrates two optical fibers into a single compact cable, with Uniboot connectors on both ends. Designed to maximize space utilization and simplify cable management, Uniboot fiber optic patch cord is ideal for high density data centers. Common types of Uniboot fiber patchcords available include Uniboot LC fiber optic patch cords, MDC cable, CS fiber patch cords, and SN fiber patch cords.



In this article, we’ll take a closer look at the different types of Uniboot fiber optic patch cords, along with their key features and common applications.

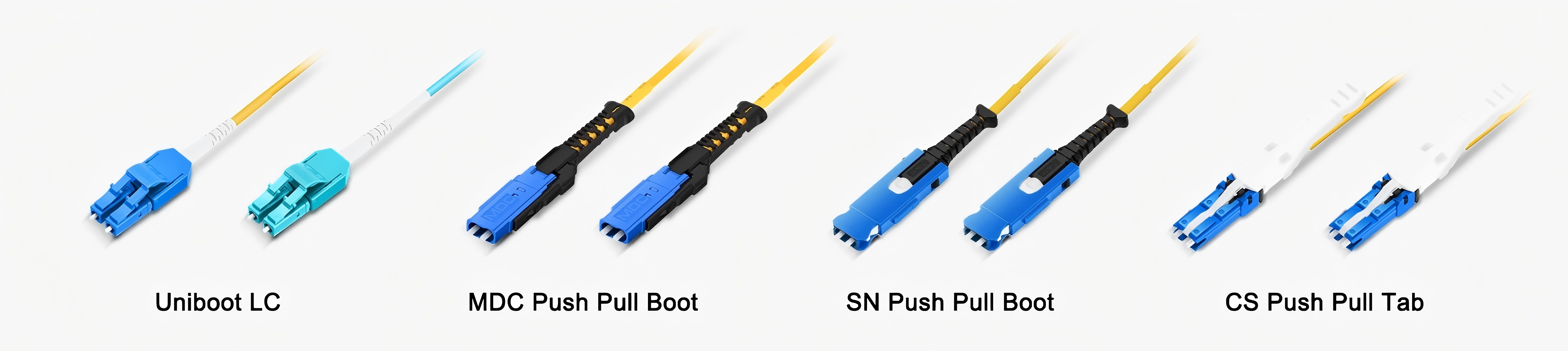

Types of Uniboot Fiber Optic Patch Cord

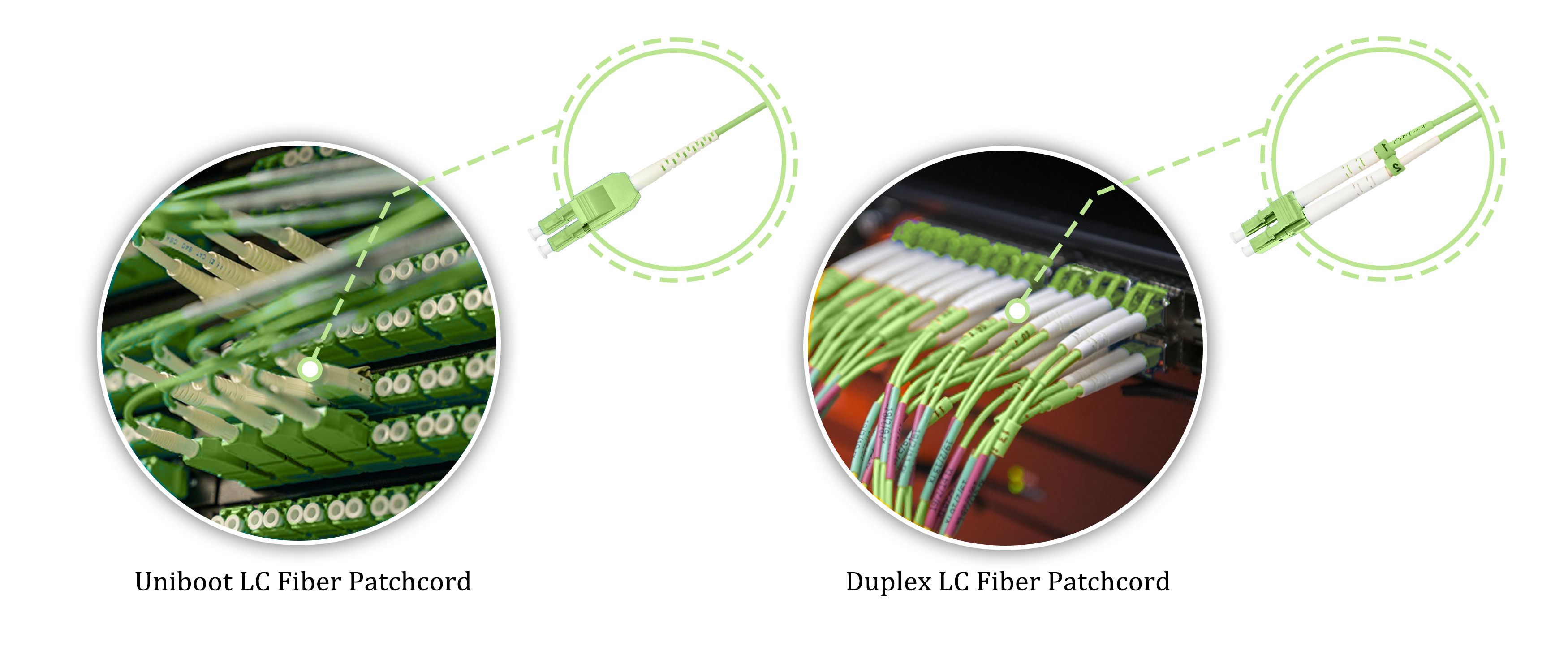

Uniboot LC Fiber Patch Cord

Uniboot LC fiber patch cord integrates two optical fibers into a single cable, with Uniboot LC connectors on both ends. It maintains the same compact form factor as a standard duplex LC fiber patch cord while reducing cable jacket bulk by up to 50%, helping optimize cable management and save valuable space in high density network environments.



In addition, most Uniboot LC fiber optic patch cords feature tool-free polarity reversal, allowing technicians to quickly switch transmit (Tx) and receive (Rx) channels on-site without the need for specialized tools. This simplifies installation, maintenance, and network upgrades.

UnitekFiber offers a wide range of Uniboot LC fiber patchcords, including tool-free polarity type and equipped with push pull tabs for easier access and handling in densely data centers.

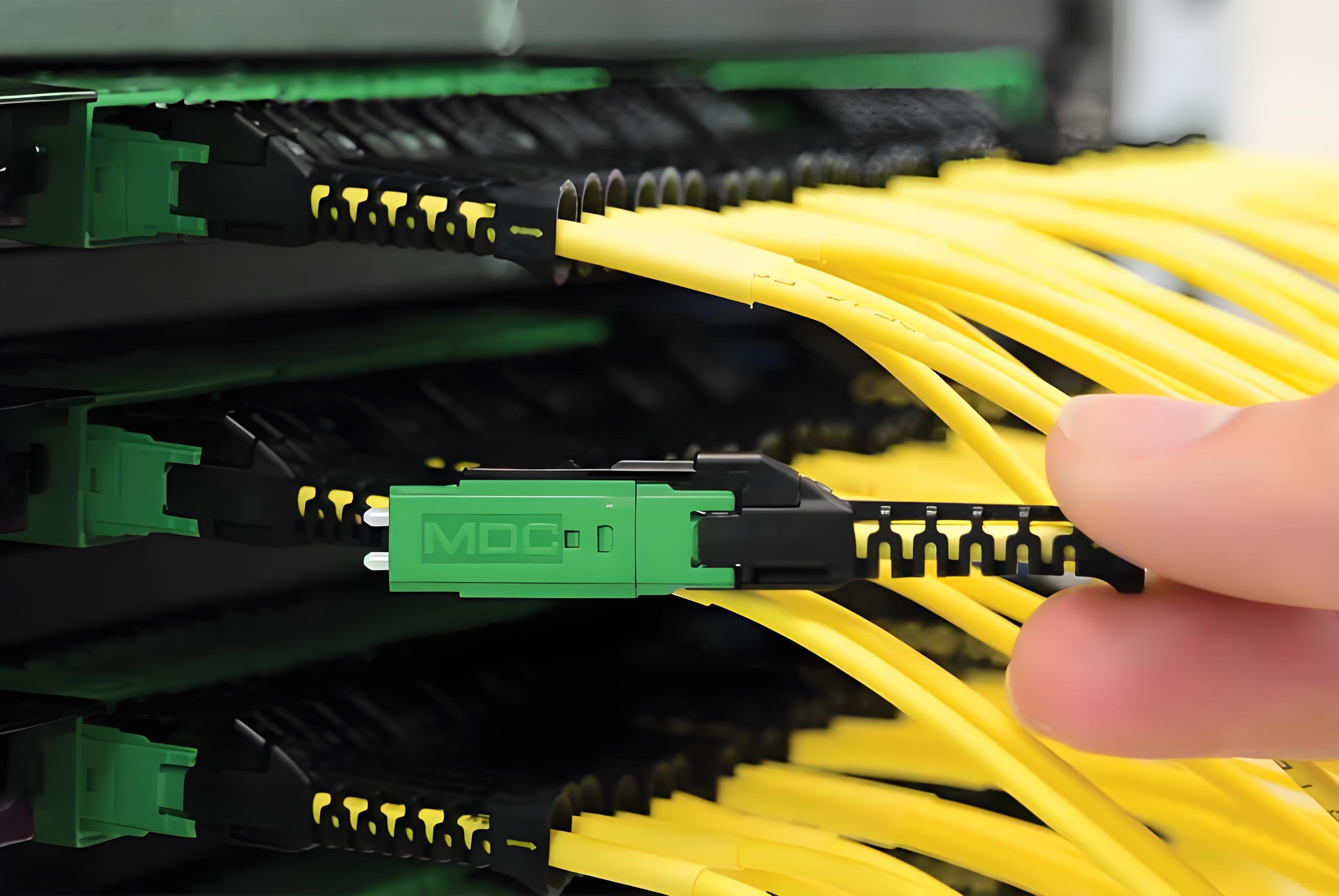

MDC Fiber Patch Cord

MDC fiber patch cord is a high density fiber optic patch cord terminated with an MDC connector, which is developed by US Conec. MDC cable is designed specifically for next generation data center networking and high speed transceivers (such as 400G, 800G and 1.6T cabling using QSFP-DD, SFP-DD, and OSFP optical transceiver).

Using the same 1.25 mm ferrule technology as standard LC duplex connectors, MDC cable achieve more than a 50% reduction in connector size through a compact housing design. This allows up to 432 fibers inside a single 1U rack space. Now, UnitekFiber offers high quality MDC fiber patch cords at competitive prices, providing a cost effective solution for hyperscale data centers, cloud infrastructure, AI networks, and other high density cabling.

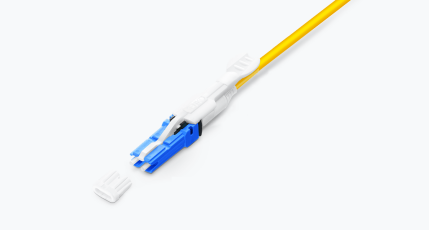

CS Fiber Patch Cord

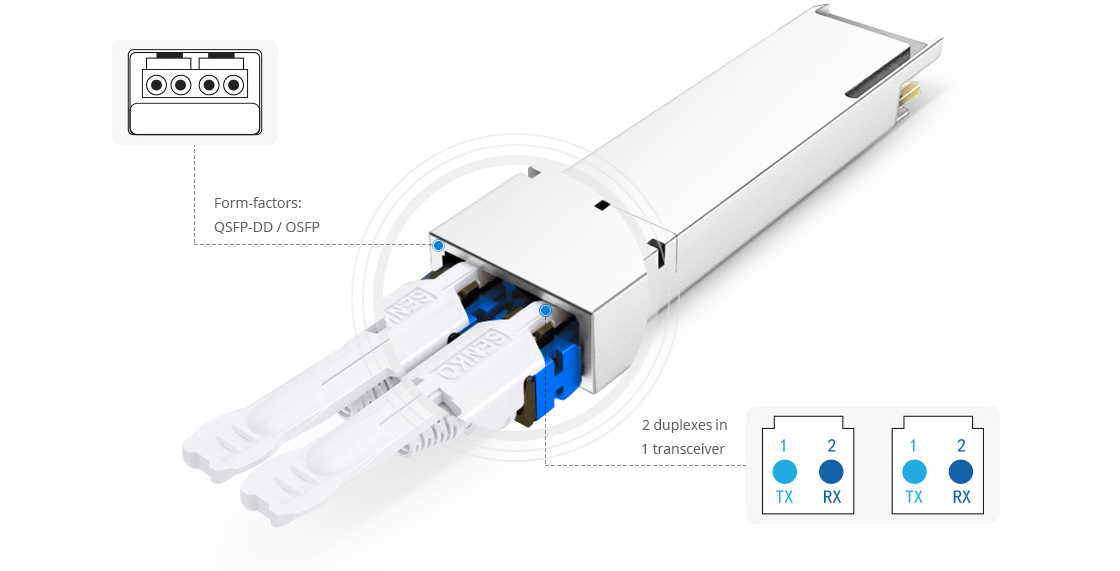

CS fiber patch cord uses the CS connector, which is developed by SENKO. Featuring a Uniboot design, CS fiber optic patch cord has a footprint that is approximately 40% smaller than that of traditional duplex LC fiber jumper. CS fiber patch cord supports high density optical transceiver, such us using with QSFP-DD and OSFP optical transceiver. CS fiber patch cord allows you to double the density in patch panels compared to an duplex LC fiber patchcord. It offers the ability to add more room for cable management as well as better airflow within a rack.

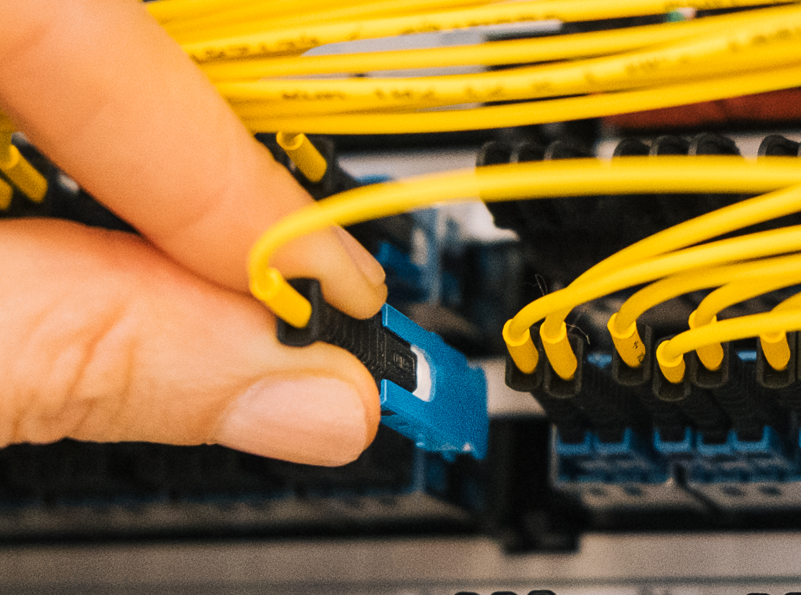

SN Fiber Patch Cord

SN fiber optic patchcord uses the SN connector, a very small form factor Uniboot connector. Instead of the side by side layout, SN fiber patchcord use a vertical arrangement. This allows operators to achieve a 3x LC duplex fiber connector in the same physical footprint, heavily streamlining breakout configurations for dense environments like OSFP and QSFP-DD transceivers. Idea for hyperscale data centers, 400G+ transceiver links, and co-location setups. Available in singlemode and multimode (OM3, OM4, and OM5) fiber options, UnitekFiber provides high quality SN fiber optic patch cords engineered to meet the demands of modern data center infrastructure.



Key Benefits of Uniboot Fiber Patch Cord

Maximized Space Efficiency

Uniboot fiber optic patchcord feature a dual-fiber, single cable design that integrates two fibers into one cable. Compared with traditional duplex LC patch cords, Uniboot design significantly reduces cable bulk and saves valuable space.

MDC cable and SN fiber patchcord deliver up to three times the port density of traditional duplex LC fiber patchcord, while CS fiber patchcord provide up to 1.5 times greater density. These high density connectivity solutions are ideally suited for 400G and 800G network switches and other next-generation networking equipment with dense port configurations.



Simplified Cable Management

Traditional duplex fiber links require two separate cables, resulting in more complex routing and increased management challenges. Uniboot fiber patchcord combines two fibers into a single cable, reducing the number of cables and connection points throughout the network.

This cleaner, more organized cabling structure simplifies cable identification and link tracing, enabling network administrators to locate and troubleshoot issues more quickly. The result is easier daily cable management, reduced maintenance effort, and improved operational efficiency.



Conclusion

As data centers continue to evolve toward higher speeds and greater port densities, efficient fiber connectivity has become more important than ever. Uniboot fiber patch cords provide a smart solution by combining two fibers into a single compact cable, helping reduce cable congestion, improve airflow, and simplify cable management.



Whether you choose Uniboot LC, CS, SN, or MDC patch cords, each solution offers unique advantages for high density networking environments.

UnitekFiber offers a comprehensive portfolio of high quality Uniboot fiber patch cords to help data centers, cloud providers, and enterprise networks meet today's connectivity challenges while preparing for future growth. Please kindly contact us via sales@unitekfiber.com if you have any required.
