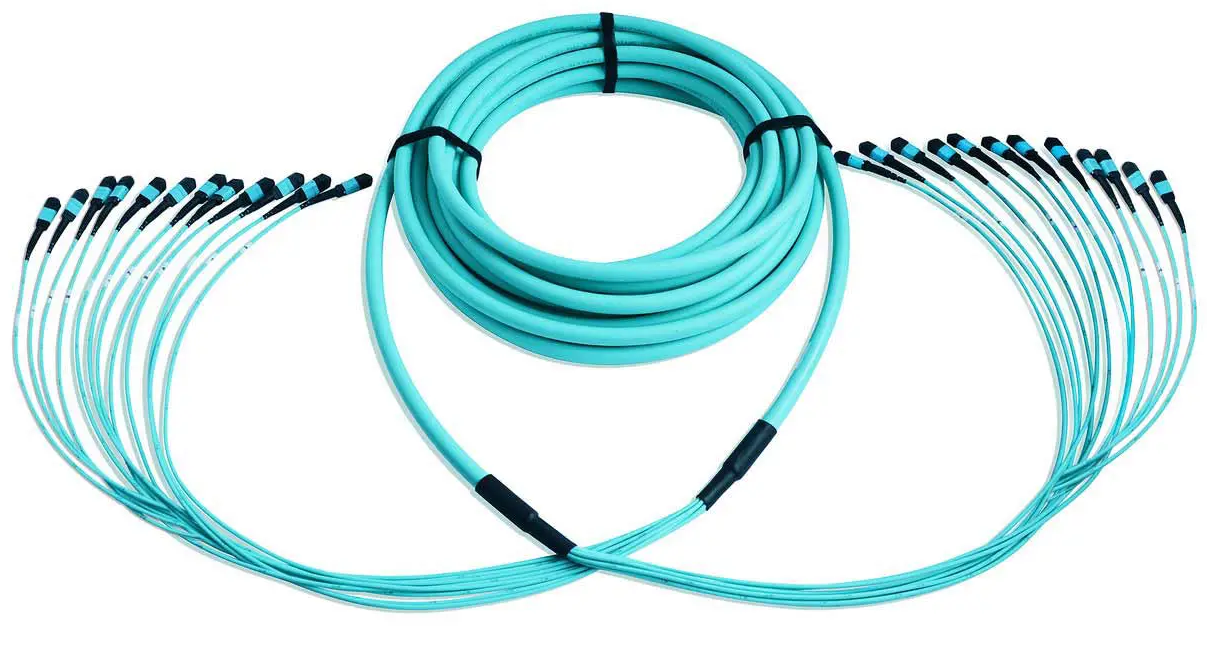

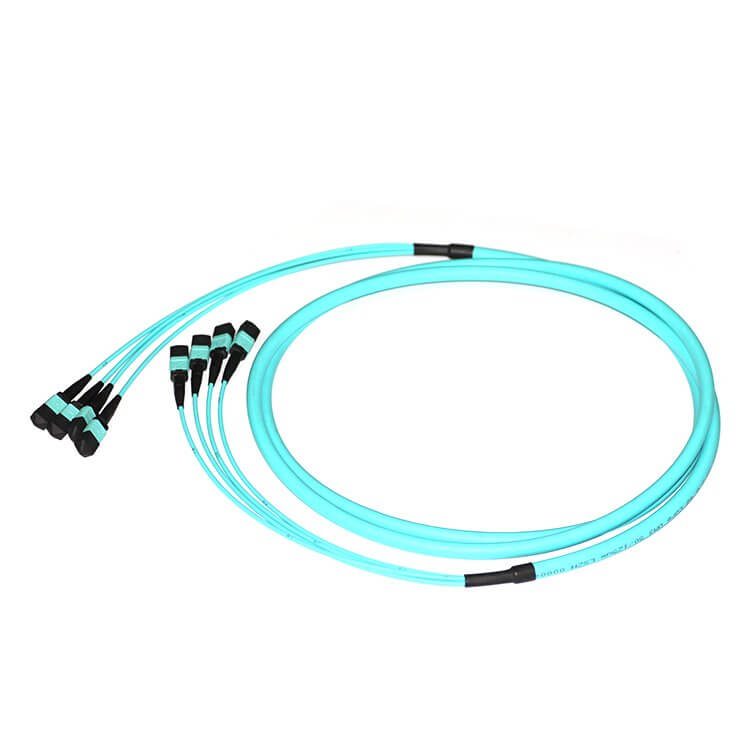

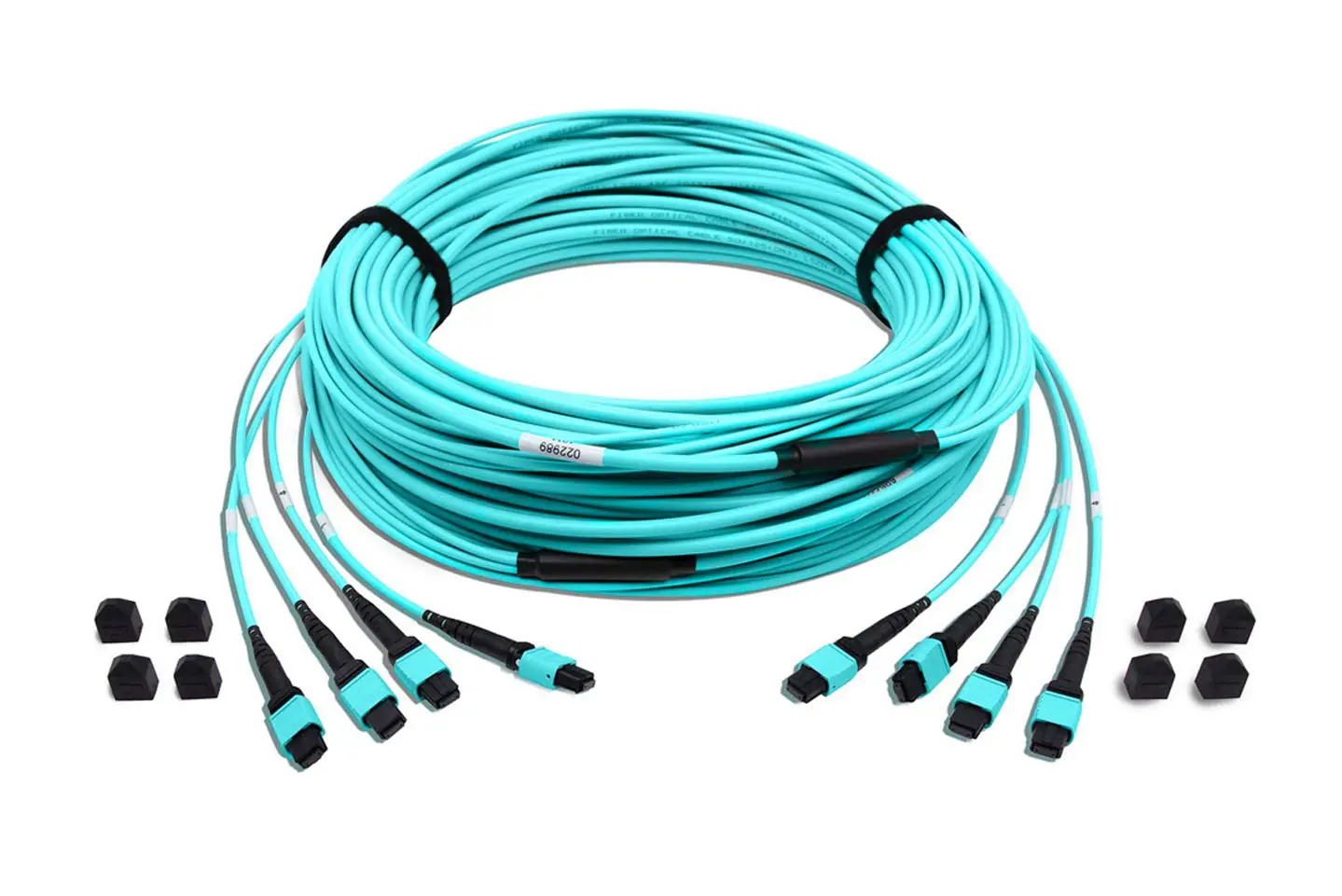

UnitekFiber’s 48Fiber MPO fiber cable is factory pre-terminated, equipped with premium 4x12 MPO connectors at both ends. Adopting elite low loss MPO connectors, this high performance MPO cable minimizes signal loss during transmission, supporting long distance transmission and multi-connection applications. MPO cable come with robust double LSZH jacket ensuring lasting durability and stable performance for long term use. The bundled structure reduces the quantity of multi-core fiber optic components, thereby decreasing cable clutter and lowering overall costs. Ideal for high density network deployments, 48Fiber MPO cables are widely utilized in back-end fiber optic backbone links.

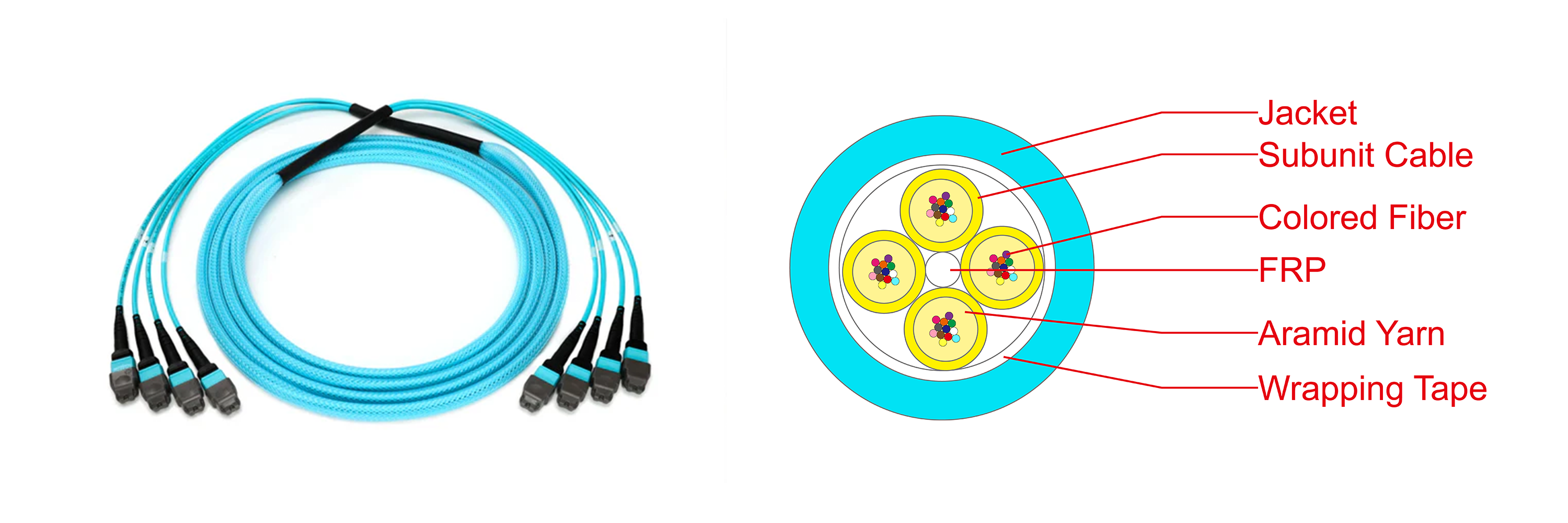

At its center sits a FRP central strength member enhance tensile strength. It is surrounded by multiple 2.0mm/3.0mm subunits cable (each housing 12 fibers). Aramid Yarn fills the gaps between subunits and the central member to enhance impact and tensile resistance. LSZH of MPO cable provides flame retardancy protection. This compact design balances high fiber density with mechanical and environmental protection, making it ideal for high density wiring scenarios like data centers.

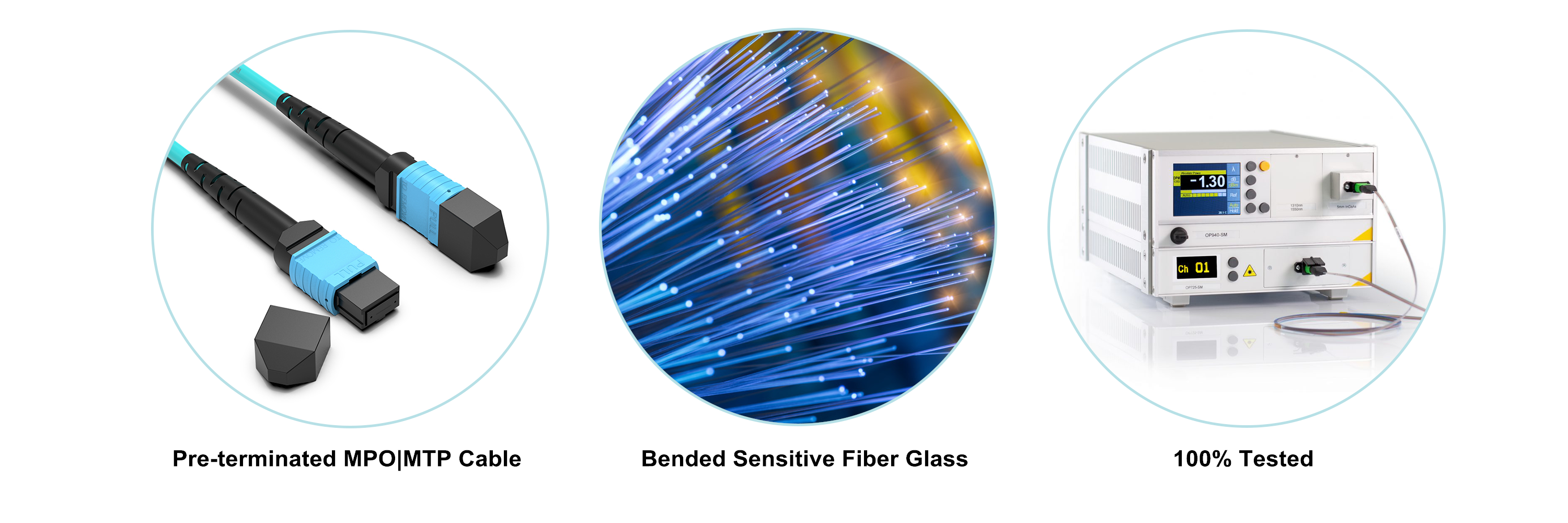

MPO fiber cable offers efficient and reliable connectivity solutions for various optical transmission with multiple core advantages. Factory Pre-terminated MPO|MTP fiber cable offer a maximum optical performance and stable transmission quality. And the MPO|MTP patchcords are ready for deployment on arrival, which results in faster installation and less time spent on the job site. Meanwhile, UnitekFiber 48Fiber MPO|MTP cable allows a smaller bending radius by using Corning high bended sensitive fiber glass. All MPO|MTP cable will be 100% tested before shipping for low insertion loss and back reflection to eliminate transmission risks.
48Fiber MPO|MTP cable is designed for data centers, AI computing clusters, and other high growth sectors demanding 400G/800G high speed transmission, like head-end termination to a fiber backbone, termination of fiber rack systems, multi-floor deployment & intra-building backbones.

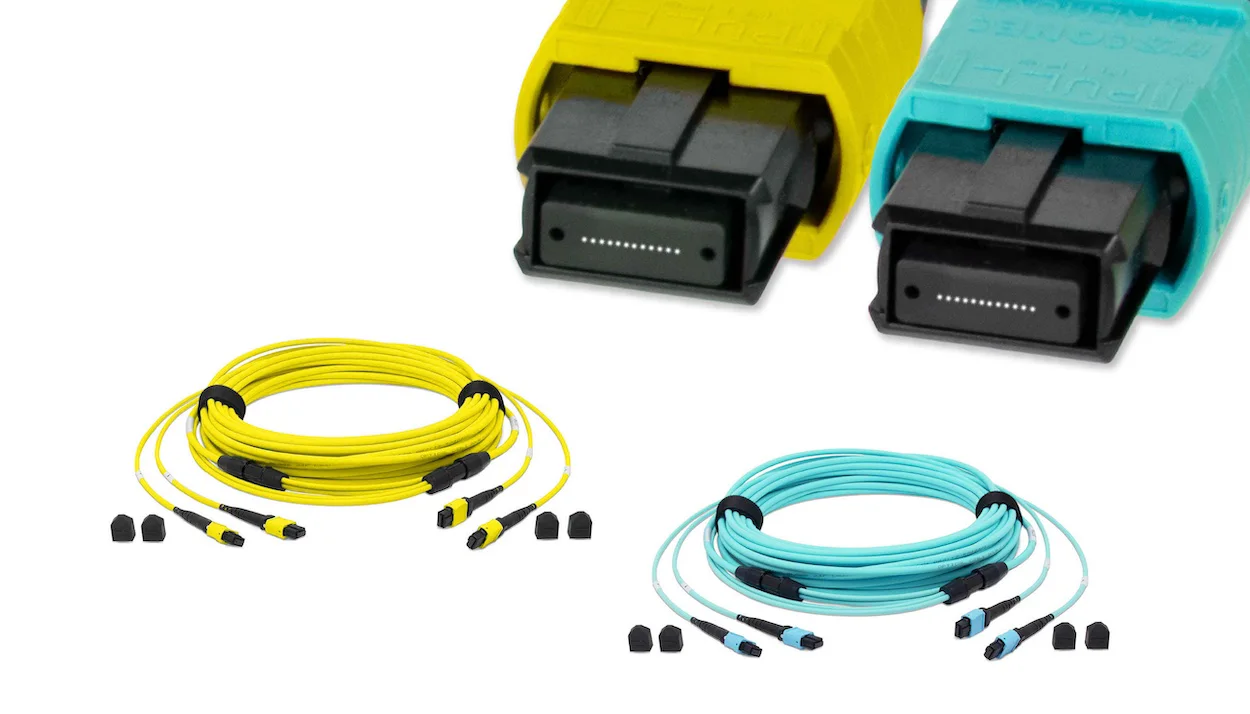

UnitekFiber, as a perfessional MPO|MTP cable manufacturer, we are offering to deliver fully customizable MPO trunk cable assemblies that align seamlessly with diverse project requirements. We offer flexible, custom length services to meet the needs of both compact data center deployments and long distance infrastructure construction. Furthermore, we offer a variety of outer sheaths, such as LSZH, PVC, and UL-certified OFNR and OFNR. We also provide a range of fiber types, covering single-mode fiber (G657A1/G655D or ect.) for high speed, long distance transmission and multimode fiber (OM3/OM4/OM5) for short distance, high bandwidth network applications such as enterprise LANs and cloud computing facilities.

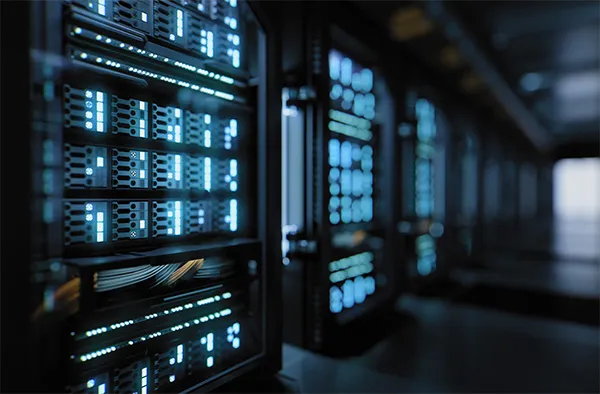

MPO trunk cable are primarily used in high density fiber cabling within data centers. They facilitate connections between MPO patch panels and equipment ports. These MPO cables are especially suitable for large-scale parallel interconnections in Spine-Leaf architectures.
The selection depends on the desired polarity:
Key up to Key down: Used for straight-through connections to ensure consistent polarity across the fiber link (commonly used in standard Type A connections).
Key up to Key up: Employed in specific topologies, such as loops or cross-connections. The choice should align with the cabling system's polarity design (Type A/B/C).
MPO cables reduce the number of required fibers, increase port density, and simplify inter-rack cabling. In large scale data centers, they help minimize cabling volume and lower both installation and maintenance complexities.
No, this MPO cable uses multimode OM3 fiber, which is not compatible with single-mode equipment. But we offer customized service, you could kindly contact us for more details
It is ideal for high density, high speed network environments such as data centers (server-to-switch connections, backbone cabling), enterprise core networks, cloud computing facilities, and high-performance computing (HPC) clusters that require large-bandwidth data transmission.
4×24 core structure keeps fibers neatly arranged, with clear labeling for each link. Troubleshooting is a breeze, we can identify the target line at a glance. Plugging and unplugging won’t disturb adjacent cables, slashing maintenance costs significantly.
MPO cable boasts impressive tensile strength. We accidentally pulled it during installation, but there was no signal interruption or physical damage. The robust construction ensures a long service life even in harsh data center conditions.
For our large scale cabling project, this 96core MPO cable reduced both material and labor costs. Fewer cables mean less purchasing expense, and faster installation cuts labor hours, total value for money.
We deployed it for our 100G backbone network, and it exceeded expectations. The OM4 multimode fiber supports high bandwidth with minimal signal loss, making it the go to choice for high speed network setups.
The low return loss design prevents signal reflection, ensuring high-quality data transmission. We noticed a noticeable improvement in signal integrity compared to our old cables.
