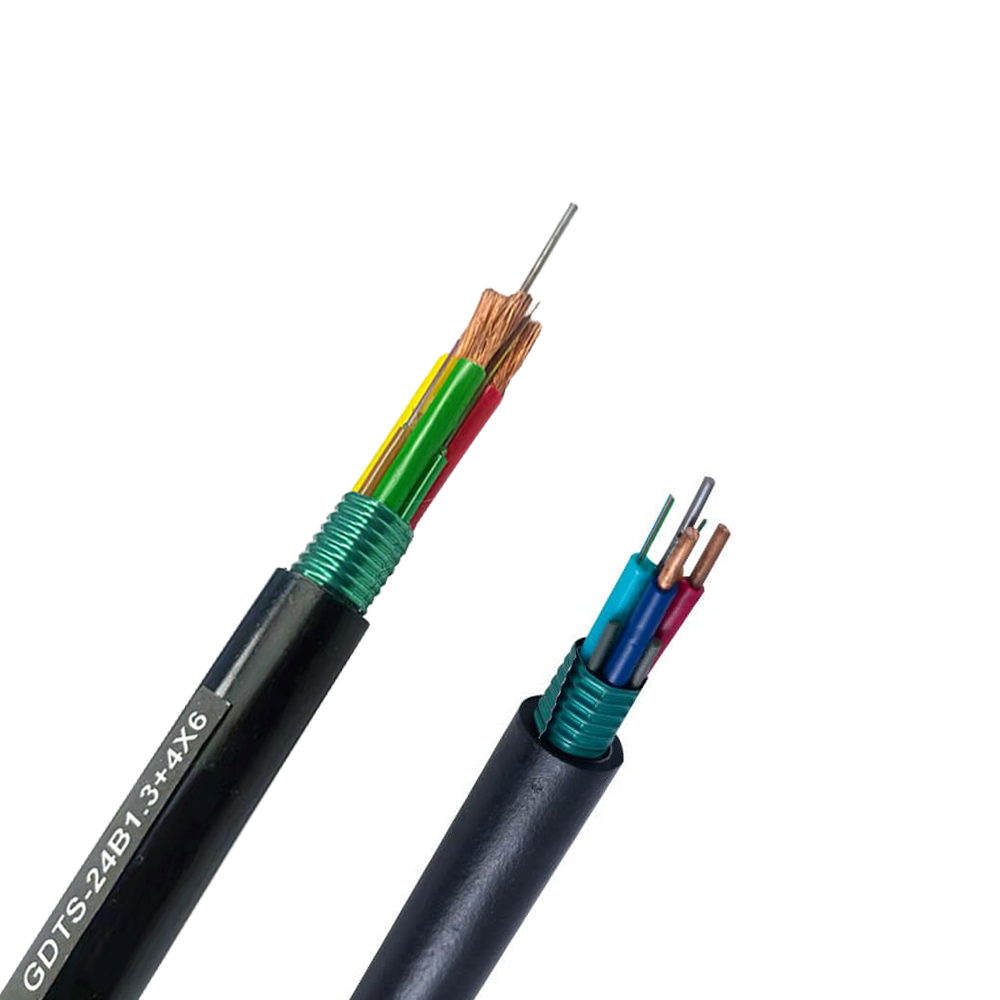

UnitekFiber's 12-core GDTS hybrid cable uses single-mode G655 optical fiber, ensuring superior signal stability and integrity during high-speed and long-distance transmission. Having a steel wire strength member at the center of the hybrid fiber optic cable, it increases the tensile strength and ensures durability. This GDTS hybrid fiber cable achieves optical and power integration, enabling a single cable to address both device power supply and signal transmission. Coming with a PE jacket, this hybrid fiber power cable has excellent UV radiation resistance, enhancing its durability in outdoor environments. In a distributed base station DC remote power supply system, it can conveniently connect the BBU and RRU, improve centralized monitoring and maintenance of device power and fiber optic.

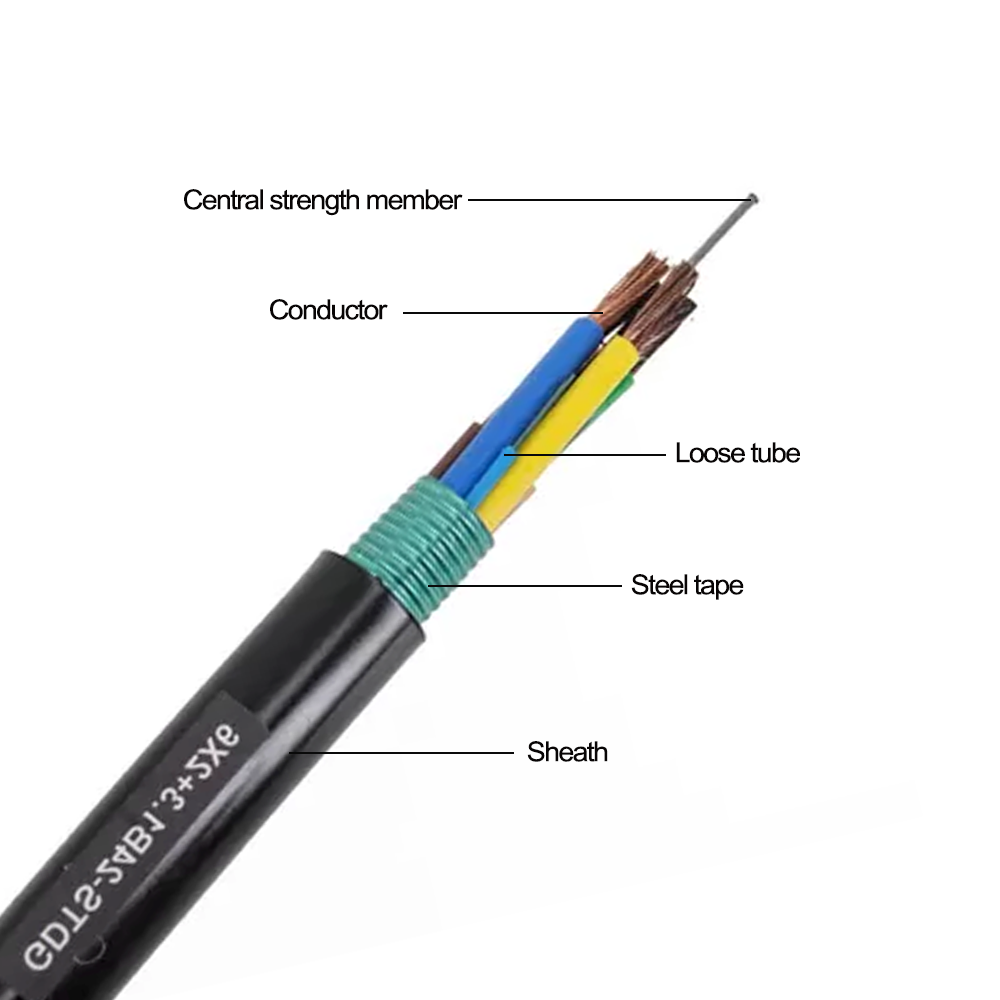

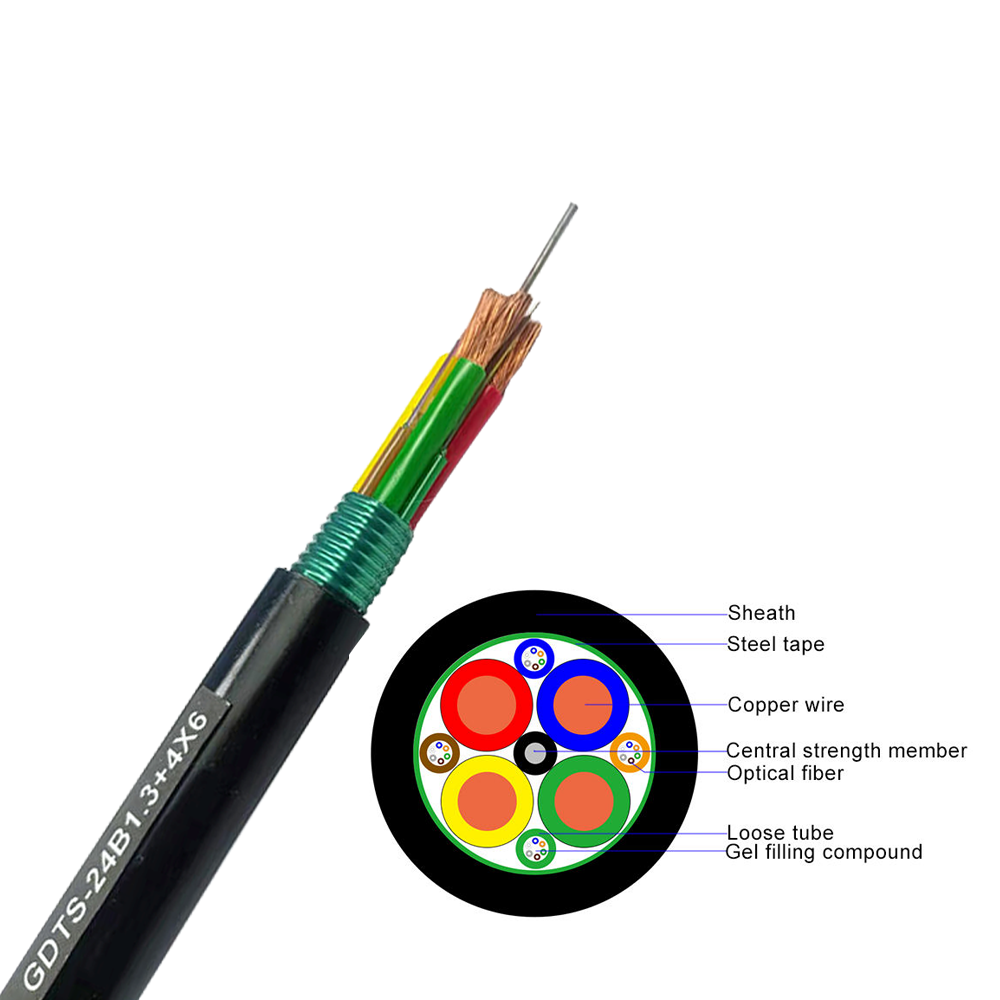

GDTS hybrid fiber cable uses a single steel wire as a strength member, which not only provides strong mechanical support for the cable, but also enhances its tensile and crush resistance, preventing deformation and breakage due to external forces during installation and use. Meanwhile, GDTS hybrid fiber cable's single steel wire can be tightly integrated with other structural layers. This allows components such as the loose tube and insulated copper conductors to be twisted around it into a compact circular cable core, providing stable structural support for the entire hybrid fiber optical cable.
GDTS hybrid fiber optic cable integrates power supply and signal transmission for equipment. GDTS hybrid fiber optic cable not only simplifies wiring processes and reduces wiring space, but also avoids signal interference issues that can arise from laying multiple power cables and signal cables in parallel. Hybrid fiber optic cable ensures that the equipment receives stable power support while achieving efficient and accurate signal exchange. GDTS hybrid fiber optic cable also improves maintenance efficiency. There is no need to inspect both the power and signal lines separately, which reduces maintenance time, enhances efficiency, and ensures that the equipment remains in optimal operating condition.
The standard delivery length is 2,000 meters/drum. Customization is available for conductor specifications, fiber counts, and special lengths to meet specific project requirements.
Yes, the GDTS hybrid fiber cables are mainly use in duct and aerial.
It operates reliably in a wide temperature range: the transport/storage temperature is -40℃ to +70℃, making it suitable for both extremely cold and hot outdoor or industrial environments.
Yes. The corrugated steel tape armor provides physical protection against rodent bites, making it suitable for underground ducts or outdoor environments.
The long term is 600N, and short term is 1500 N.
We’ve been using GDTS hybrid power fiber cables for 5G small cell roll outs in urban areas. The steel tape armor also gives us peace of mind against accidental damage. Highly recommend for telecom infrastructure!
We installed GDTS hybrid power fiber cables along a 5km highway for our surveillance network, and they’ve exceeded expectations. The aerial using was quick thanks to the cable’s lightweight design, and the PE sheath has held up against UV exposure and strong winds.
Our rural power grid monitoring system relies on GDTS hybrid fiber power cables to connect remote sensors and cameras. Operating in -10℃ winter temperatures here, the cables have maintained stable performance for over a year.
Customization was key for us, we ordered cables with 8mm² conductors to support higher power devices, and the UnitekFiber delivered exactly what we needed.
The hybrid fiber power cable from UnitekFiber work great with my project, great!
