12 cores MPO APC-SC APC fiber patch cord is basically constructed with high quality a MPO APC connector and 12 pcs SC APC connectors along with the loose tube fiber cable which is of 0.9mm diameter. These patch cords are widely used in telecom industry, LAN, FTTH, CATV, Testing instruments etc. The fiber cores with cable length can be customized as per customer request.

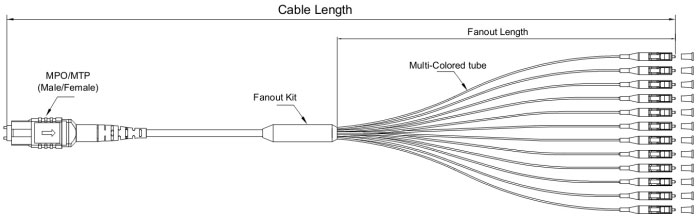

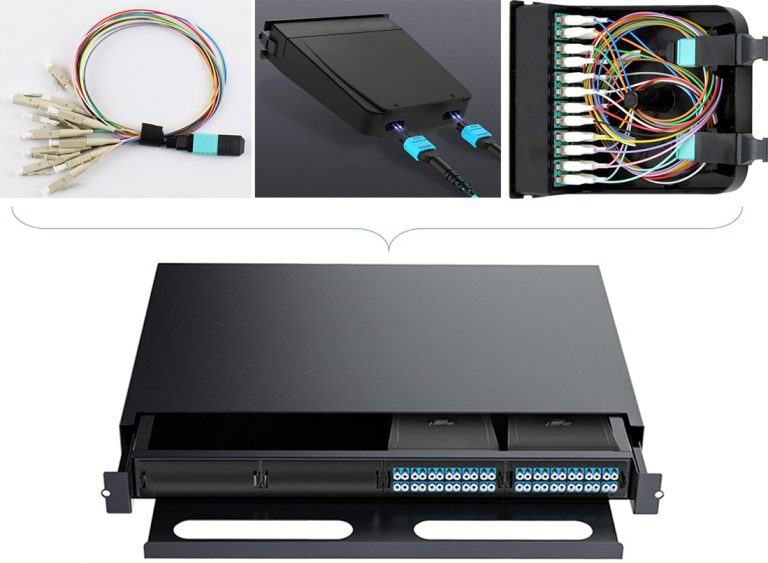

MTP/MPO Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

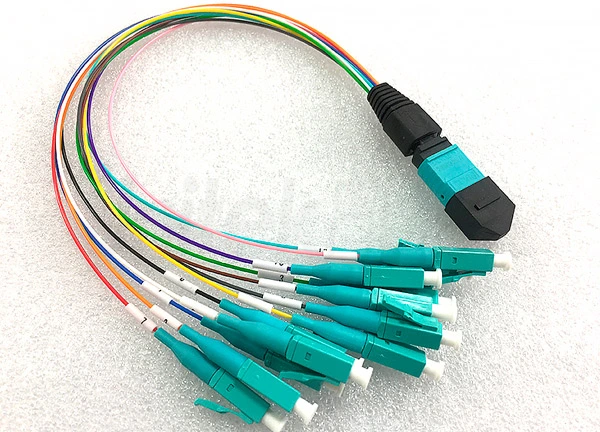

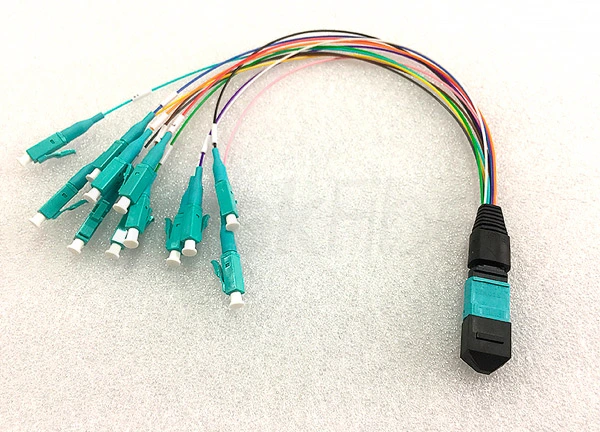

MPO/MTP harnesses cables are usually divided into three types of MTP-MTP connector, MTP-Common connector and MTP-Secure Keyed LC connector, according to different colors divided into SM, MM and 10G MM. The fiber cores range from 8 to 144.
Superior Workmanship Guarantees Stable Transmission

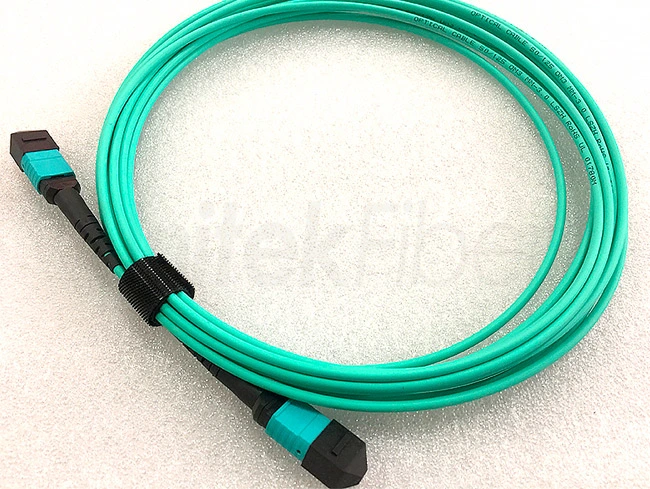

MPO connectors are the proven and trusted MPO style format,MTP/MPO cable offering state-of-the-art multi-fiber and mechanical performance.
Perfect High-performance Fiber
Excellent bending and compression resistance make it an ideal choice for high density cabling
Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.
Normally about 7 days after confirmation.
Normally 7-20 days depends on products and order quantities.
Yes, we provide customized service and can do artworks including printing, logo, etc. for you.
YES, OEM is welcomed.
Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
Connector Technical Parameter
Model | MM | |

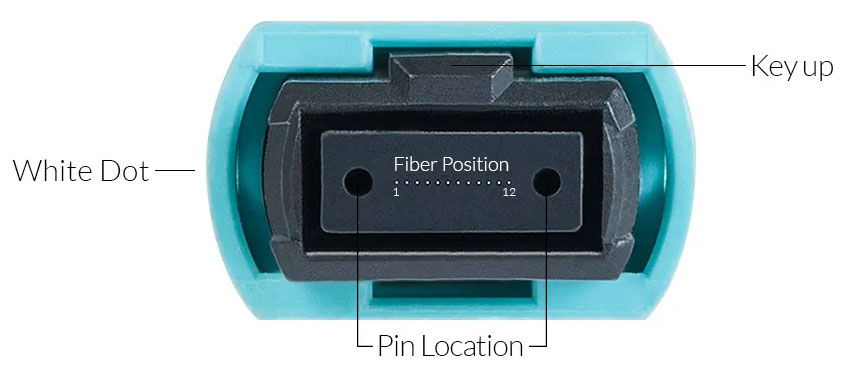

Connector A : MPO/MTP | ||
Insertion Loss | Standard | ≤0.70dB |
Elite Low Loss | ≤0.35dB | |
Return Loss | PC≥25dB | |
Test Wavelength | 850nm&1300nm | |
Connector B: LC | ||
Insertion Loss | Standard | ≤0.30dB |
Return Loss | PC≥35dB | |
Test Wavelength | 850nm&1300nm | |

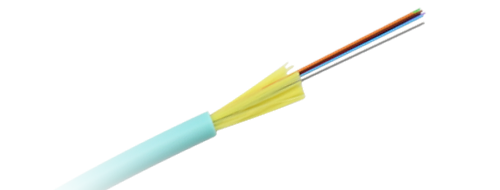

Cable Dimensions and Constructions
Items | Descriptions | |
Optical Fiber | Fiber count | 12 |
Color | Optical Fiber Chromatography | |
Sheath | Material | LSZH/OFNR/OFNP |
Color | Blue、Orange、Green、Brown、Grey、White、Red、Black、Yellow、Purple、Pink、Aqua | |
Diameter | 0.9±0.05mm | |
Mechanical and Environmental Characteristics
Items | Descriptions | |
Tensile | short-term | 6N |
long-term | 2N | |
Min.Bend Radius（Dynamic） | mm | 50 |
Min.Bend Radius（Static） | mm | 30 |
Operating Temperature | - 2 0 ℃-+ 6 0 ℃ | |
Temperature Range | - 2 0 ℃-+ 6 0 ℃ | |
