The portable cable reel in lightweight steel with capacity for 1000m fiber optic cable. It is designed for handling fiber cables in temporary installations. There are wheels in the bottom, which are flexible, smooth and wear-resistant, making it easy to move anywhere. The cable storage reel surface is sprayed with plastic, beautiful and elegant. It's convinient for users to operate, just turn the winding handle clockwise or counterclockwise to complete the winding and rewinding task.

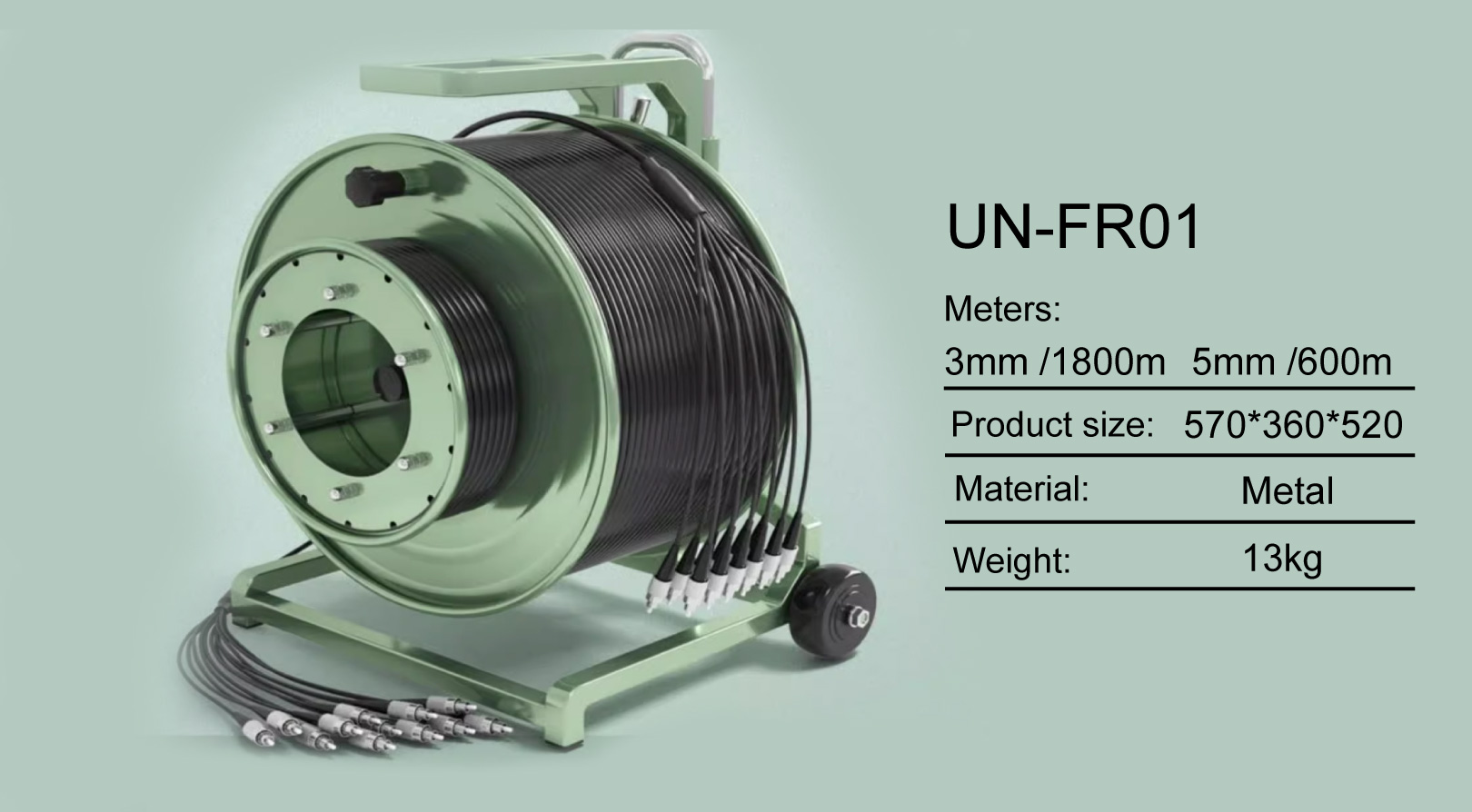

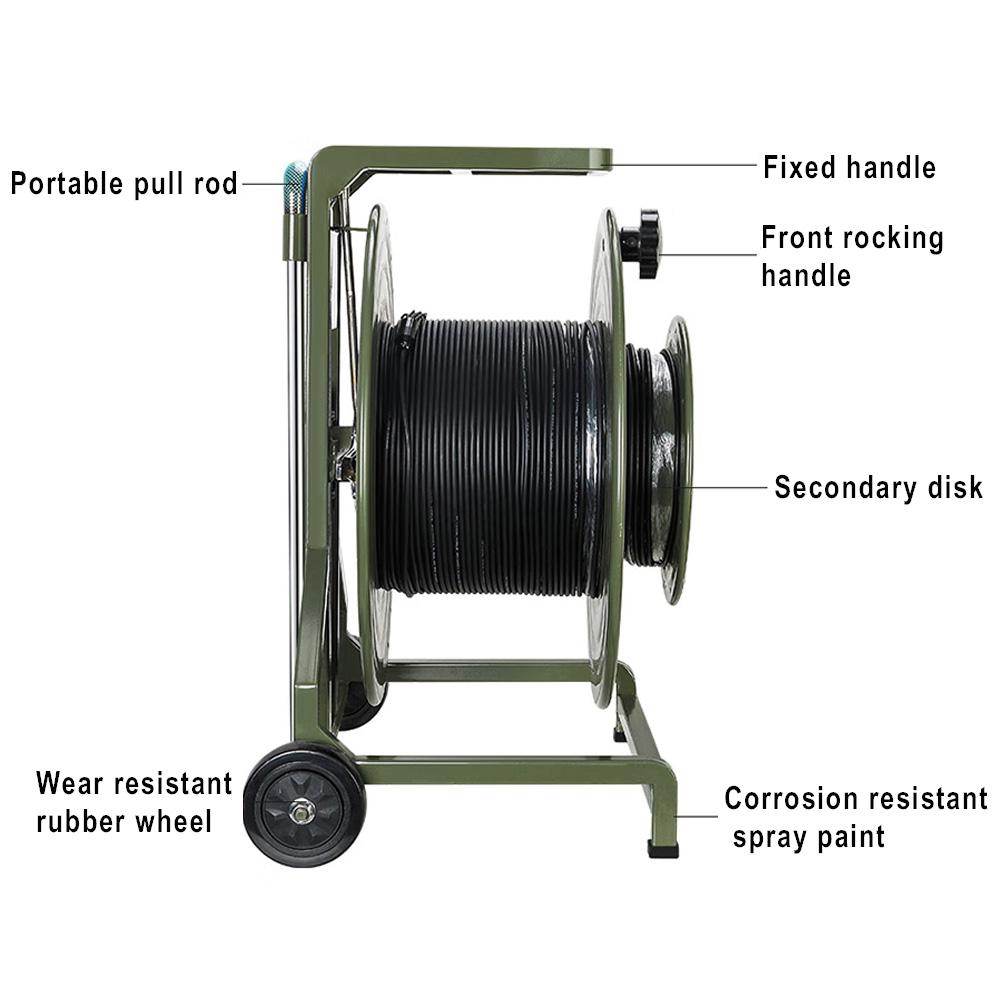

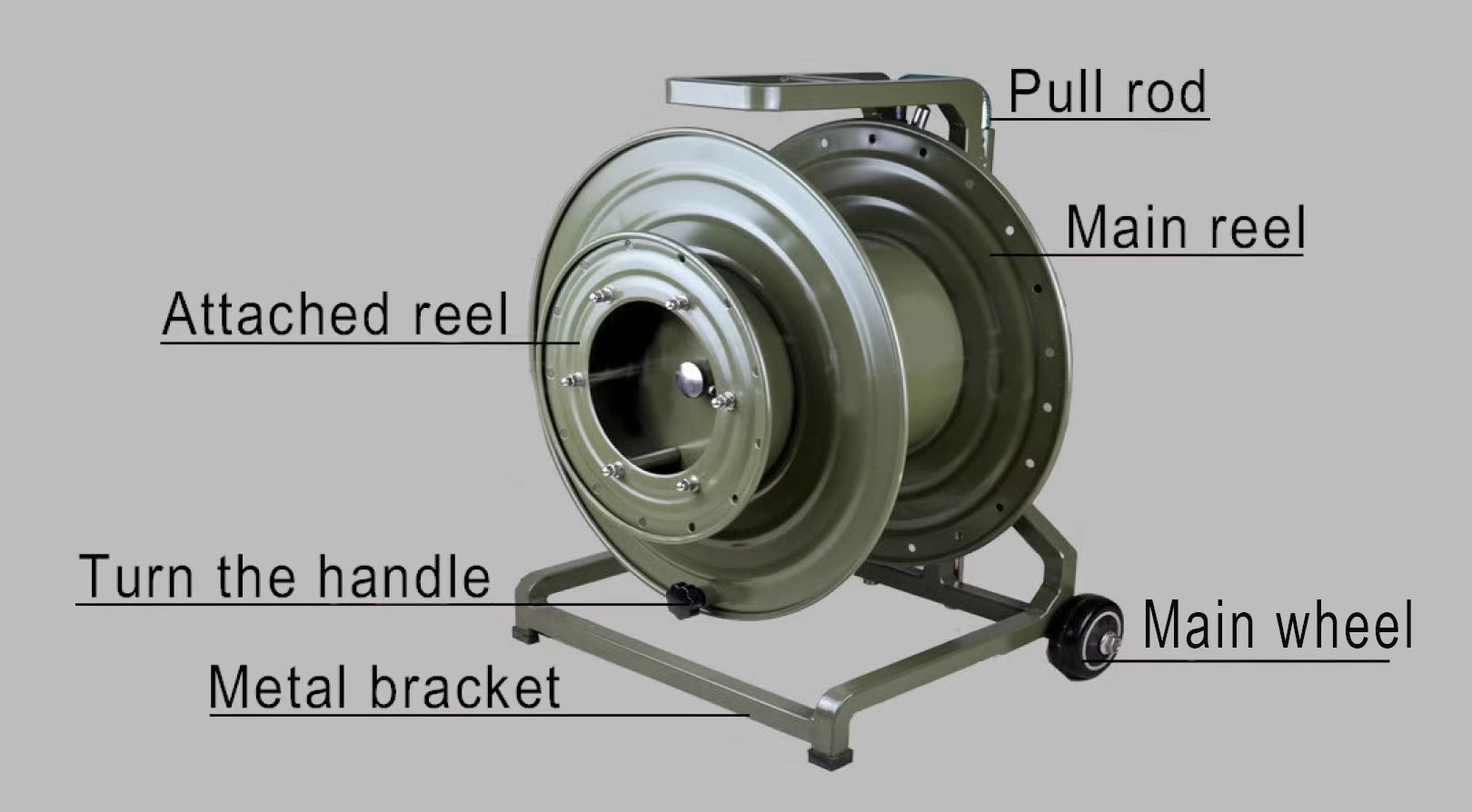

This fiber optical cable reel is portable and lightweight. It ensure a strong structure, making it easy to carry and transport. The main reel is Φ480mm, the shaft is Φ200mm, and the main reel width is 180mm. These size parameters are reasonably designed to ensure the stability and orderliness of the optical fiber cable during the winding process. The fiber reel has clear capacity indicators for optical fiber cables of different diameters. For example, the capacity of a 3.0mm optical fiber cable can reach 1800M, a 5.0mm optical fiber cable can wind 600M, and a 10.0mm diameter optical fiber cable can wind 160M. This diverse capacity adaptation can meet the needs of different users in various projects. The all-metal design ensures the durability and wear resistance of the reel, while the three-speed adjustment, pull rod, pulley (optional rear rocker) and other features further improve the convenience and flexibility of operation.
UnitekFiber's tactical cable reel are widely used in communication engineering and some other fields. For the construction and maintenance of large-scale communication networks, its large-capacity design can meet the needs of long-distance fiber optic cable laying. For example, in the laying of inter-city backbone networks, the use of this cable reel can reduce the number of fiber optic cables connectors and improve the stability and speed of network transmission. The sturdy all-metal structure and flexible operation of this reel enable it to adapt to different working environments and ensure the safety and order of optical fiber during storage and laying.
In some temporary network construction scenarios, such as large-scale event sites, emergency communication support, etc., the lightness and easy operation of this outdoor fiber optic cable drum can quickly complete the laying and sorting of optical fiber cables, ensuring the timely opening and stable operation of the network.

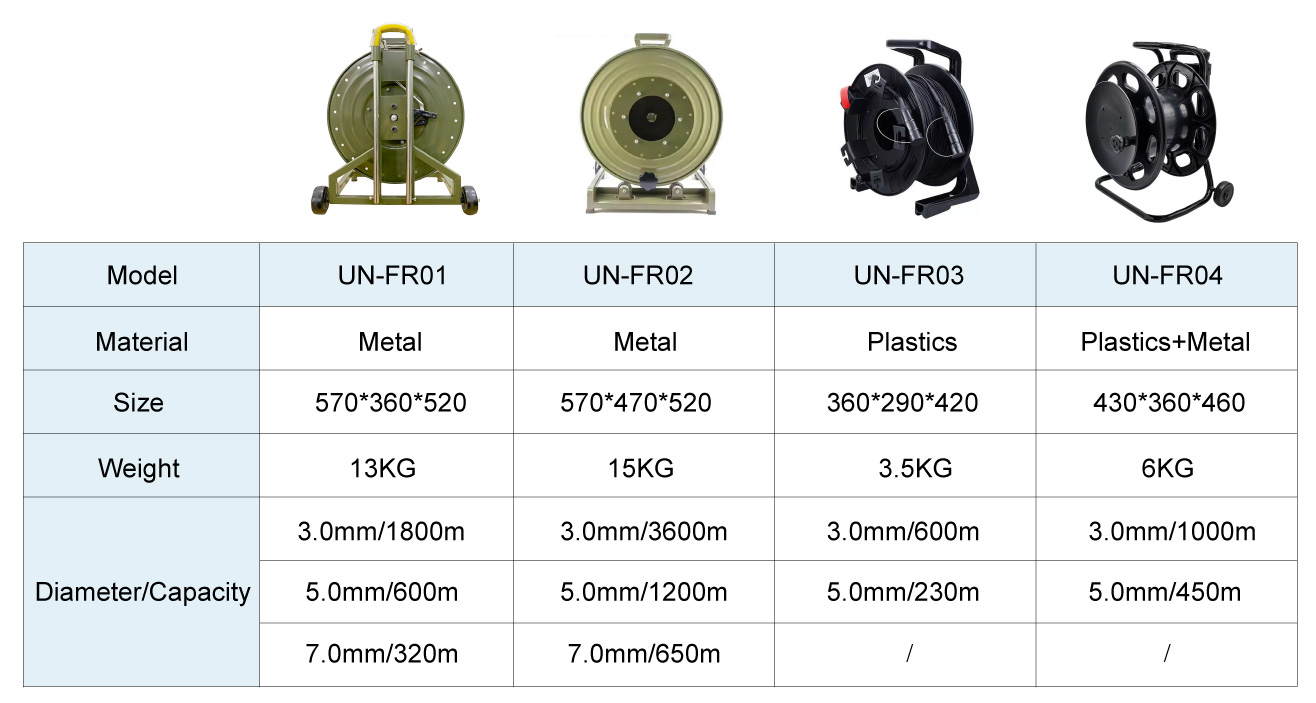

UnitekFiber offering a serious of fiber patch cord reels that offer you extensive choices. The Fiber Patch Cord Reel designed with various specifications, differing in fiber core types, material and the rolling length to meet different requirements.
After using, you can simply clean the dust and debris on the surface of the winding reel. If it is not used for a long time, it is recommended to store the reel in a dry and ventilated environment, away from direct sunlight to prevent material aging. And regularly check whether the rotating parts of the reel are flexible.
Hello, the product is designed to carry various types of fiber optic cables, including single-mode and multi-mode cables. It provides a reliable solution for communication, broadcast, and pro audio applications.
Hello,it is very convenient to use.the product features a pull rod and pulley, allowing operators to effortlessly rotate the reel during deployment or take-up situations. This convenient design ensures smooth cable management and enhances ease of use.
No, it does not include fiber optic cables. Fiber optic cables need to be purchased separately.
Conventional models can wind 10.0MM optical fiber cables up to 160M. For long-distance cabling projects, there are also large-capacity specifications. The length of 3.0MM winding can reach 1800M, meeting the needs of laying from short indoor distance to long outdoor distance. The specific winding length depends on the selected model. Please refer to the detailed parameter table of the product when purchasing.
The diverse capacity is impressive. It can handle optical fiber cables from 3.0mm to 10.0mm, meeting the needs of different projects.
The three-speed adjustment function is a highlight. This design allows me to flexibly adjust the winding speed according to my actual needs and improve work efficiency.
The pull rod and optional pulley of the reel are very convenient, saving me a lot of effort and time during use.
The diverse capacity is impressive. It can handle optical fiber cables from 3.0mm to 10.0mm, meeting the needs of different projects.
The three-speed adjustment function is a highlight. This design allows me to flexibly adjust the winding speed according to my actual needs and improve work efficiency.
