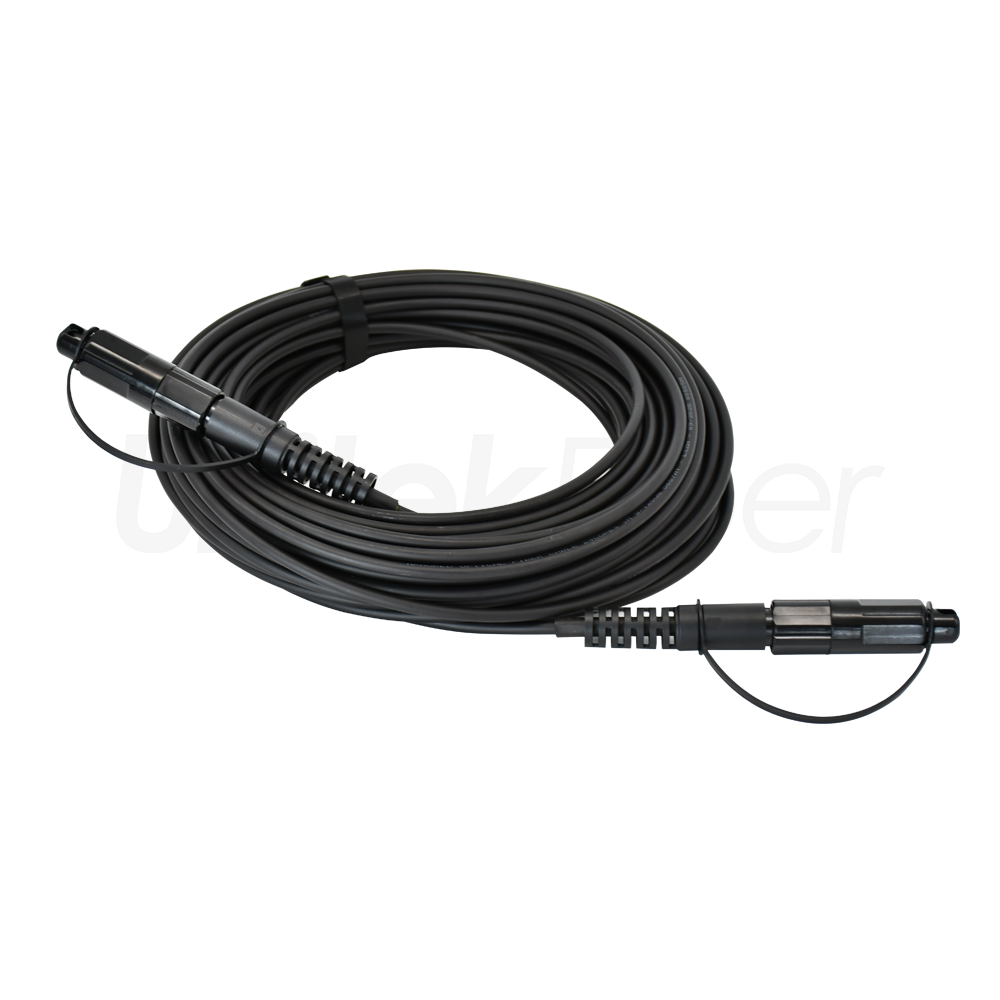

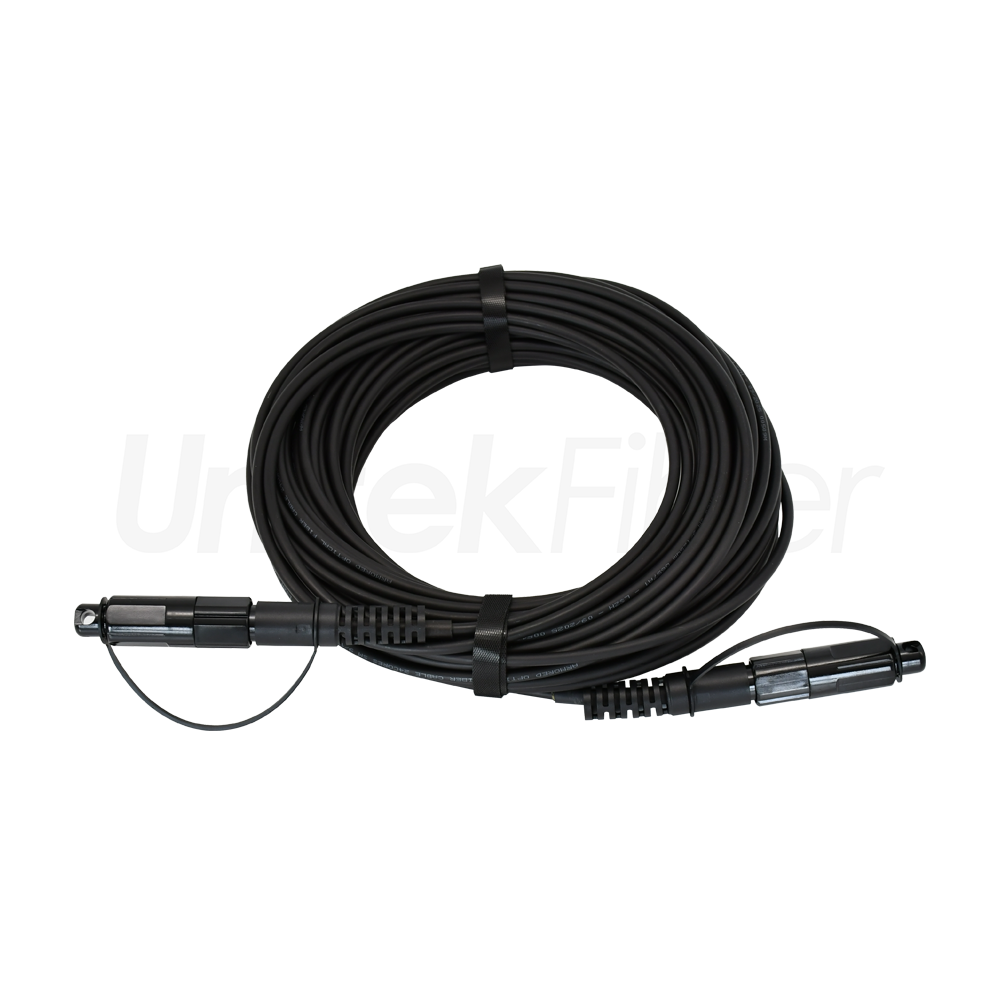

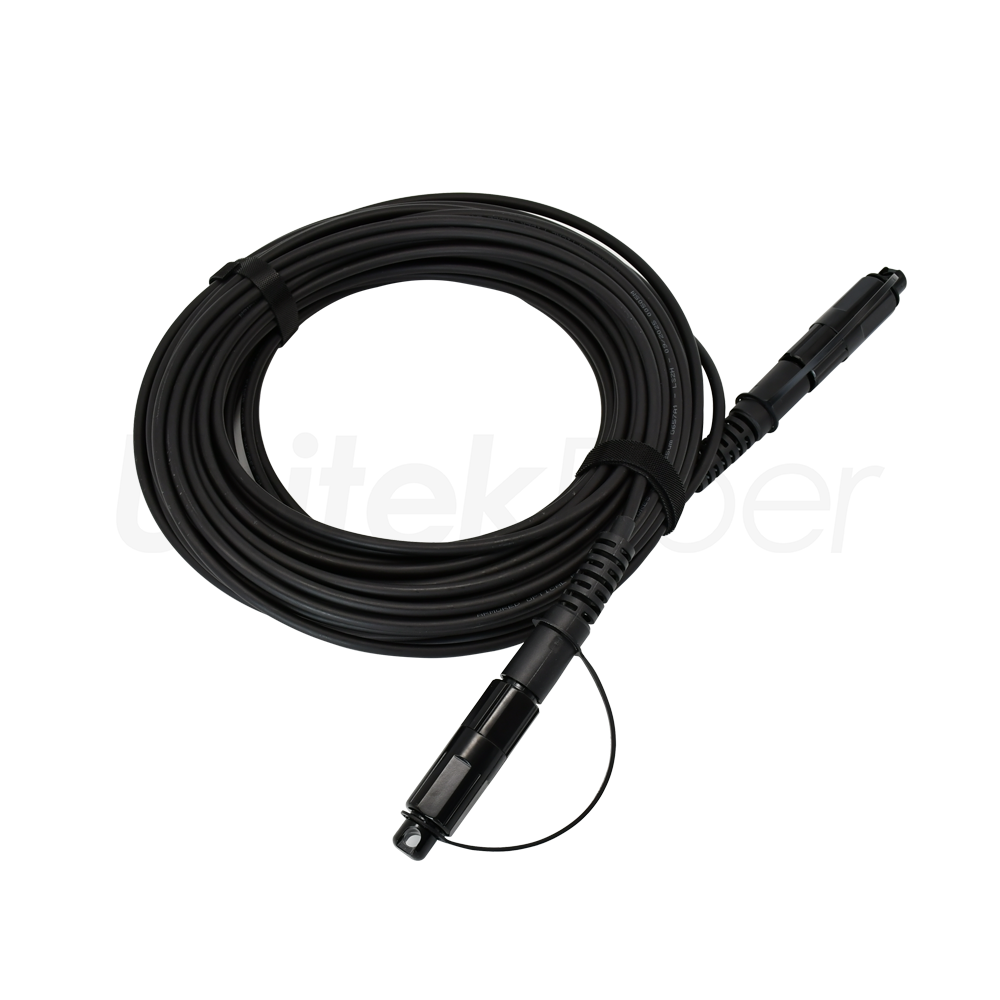

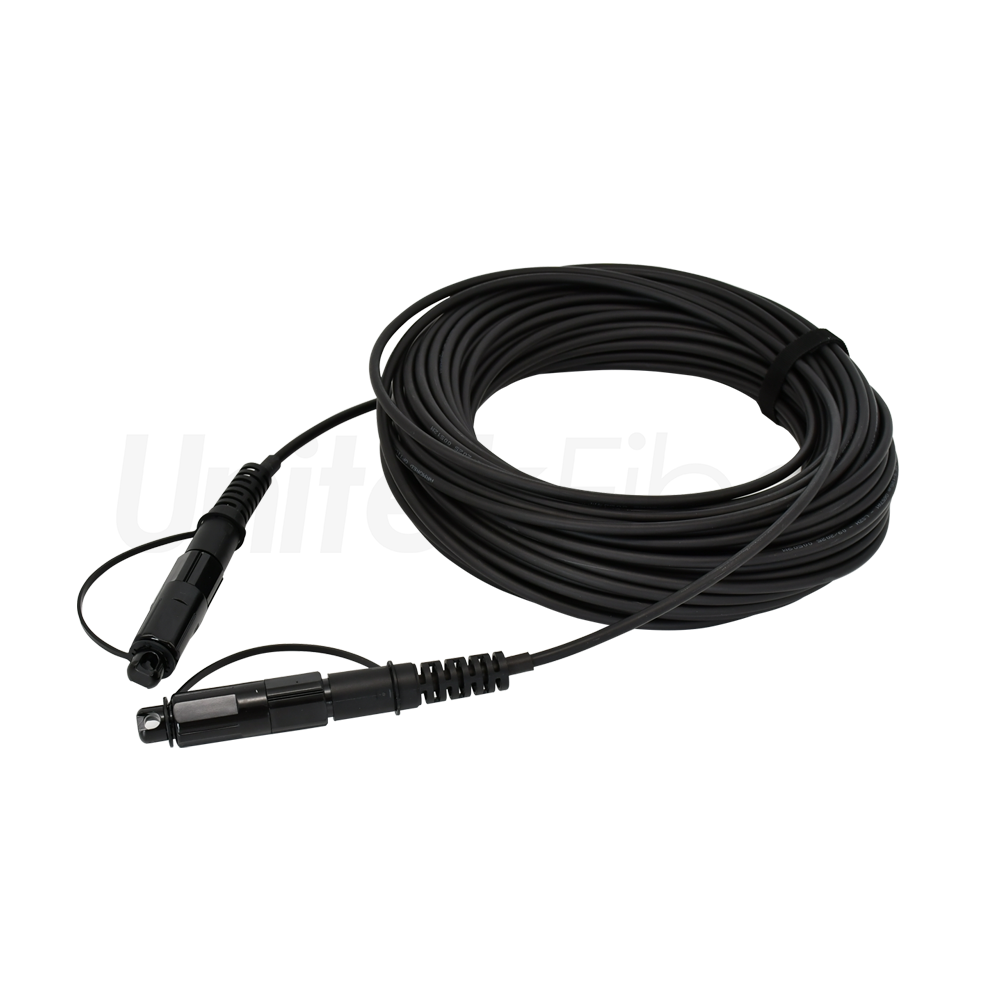

24Cores Optitap MPO FTTA armored waterproof fiber patch cord is a high-performance fiber optic patchcord solution specifically designed for harsh outdoor environments, especially suitable for communication network scenarios such as Fiber to the Antenna (FTTA). With its excellent armored structure, the optitap MPO patch cord can effectively resist rainwater, moisture, dust, anti-rodent and external impact, and adapt to a wide temperature working environment of -40℃~+70℃. The Optitap MPO fiber patchcord uses 24 cores G657A1 optical fiber with excellent bending performance, and reduce signal attenuation caused by optical fiber bending. The Optitap MPO FTTA patch cord is an ideal choice for 5G base station construction, data center interconnection, outdoor communication hubs and other scenarios.
Optitap MPO-Optitap MPO fiber patch cord features an IP67 rated fully sealed construction, which represents a high level of dust and water resistance in industrial standards. This sealed design of Optitap MPO fiber patch cord can effectively prevent the ingress of water, dust, and various debris, ensuring the stable operation of the fiber patch cord even when submerged in water at a certain depth for a specified time or in dusty outdoor construction sites. Additionally, the LSZH Black jacket is specially treated to provide excellent UV resistance. The Optitap MPO fiber patch cord can withstand long term exposure to strong ultraviolet radiation without aging, cracking, or performance degradation. Optitap MPO cables are ideal for harsh environments, including industrial and outdoor telecommunications applications.
.png "Optitap_MPO_cable.png")

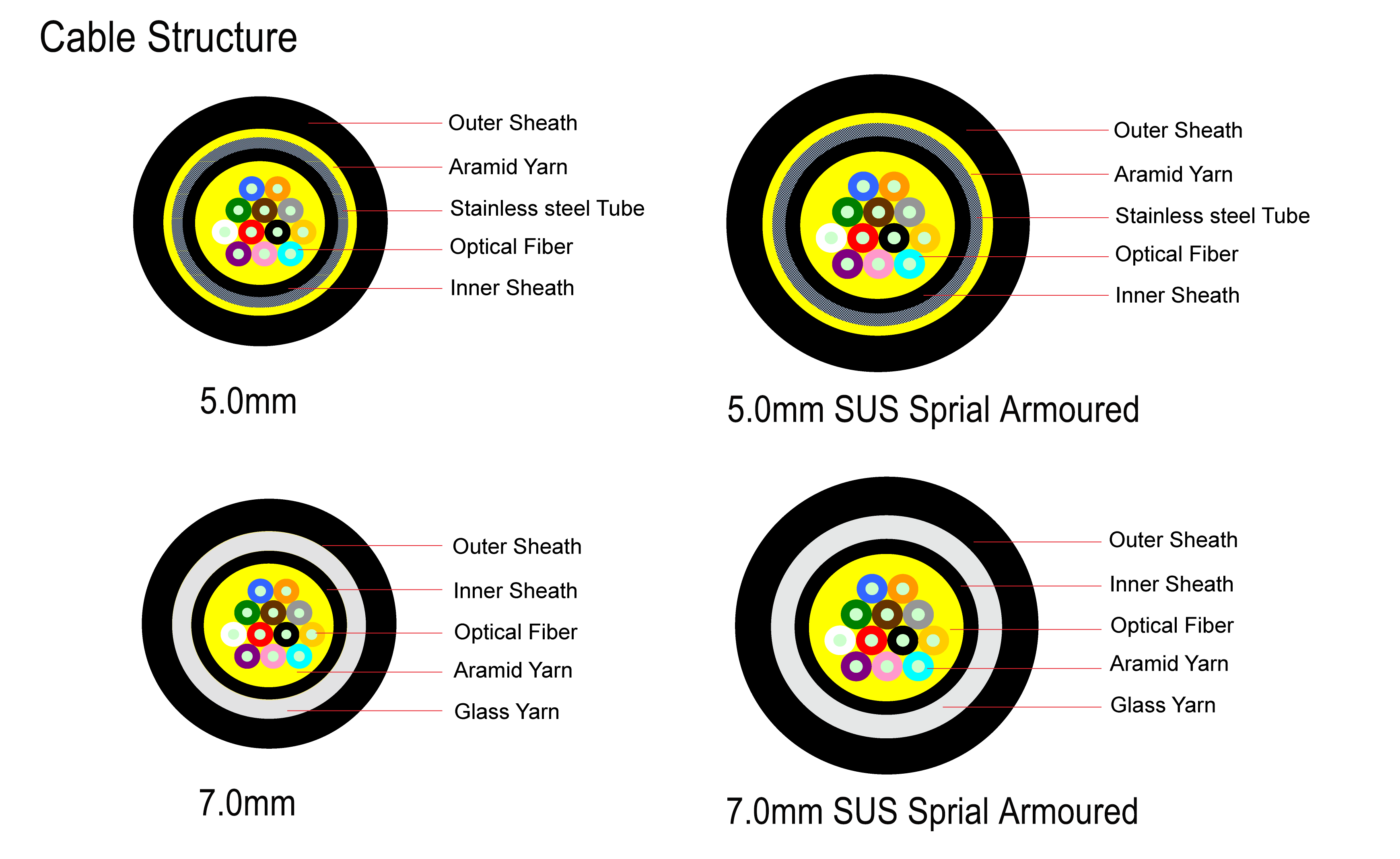

Waterproof fiber patch cord are widely used in outdoor data transmission network, typical types are with 8/12/24 fiber cores. And the diameter of cable is typically 5.0mm and 7.0mm, which is suitable for most scenarios. Outdoor patchcord usually use stainless steel armored to make the optical cable more sturdy.
Optitap MPO fiber patchcord is specifically designed for outdoor FTTA systems, providing robust fiber connectivity in remote radio heads and base stations. It also meets the demanding requirements of WiMax, LTE, and military applications, ensuring excellent performance even in extreme conditions. Its flexible connector options (such as LC/SC/MPO) and cable structure (5.0mm/7.0mm or armored/unarmored) support customized cabling, adapting to the diverse needs of high-density networks in telecom and industrial settings. Suitable for both horizontal and vertical cabling installations in industrial outdoor environments.
The OptiTap MPO waterproof connector is designed for FTTH and FTT A outdoor applications, providing reliable connections in harsh environments such as rain, dust, and high humidity.
The OptiTap MPO fiber patch cord meets IP67 waterproof rating, ensuring stable performance under rain, immersion, and dusty conditions.
UnitekFiber's FTTA fiber patch cable can be used for FTTA remote traction of the outdoor base stations, RRU to BBU port interconnection, 3G, 4G, LTE, distributed base stations and Power communication systems, etc.
Yes, it could be structured with a spiral armored tube only for the breakout leg which makes the cable more stable and has higher tensile strength.
Optitap MPO cable is designed as 8/12/16/24 fiber assemblies, ideal for FTTA and similar applications that require precise, high-reliability connections.
The waterproof level of this FTTA fiber patch cord usually could be reach IP67, if you need higher grade, please kindly contact us for more detail.
