MPO/MTP breakout optical cable is a high density optical fiber jumper, which is often used in data centers, optical communications and other applications. The breakout optical jumper is based on the MPO/MTP cable and expands a single MPO/MTP cable into multiple optical jumper outputs through branching technology. It can not only provide higher bandwidth, larger transmission capacity and higher density, but also facilitate management and maintenance.

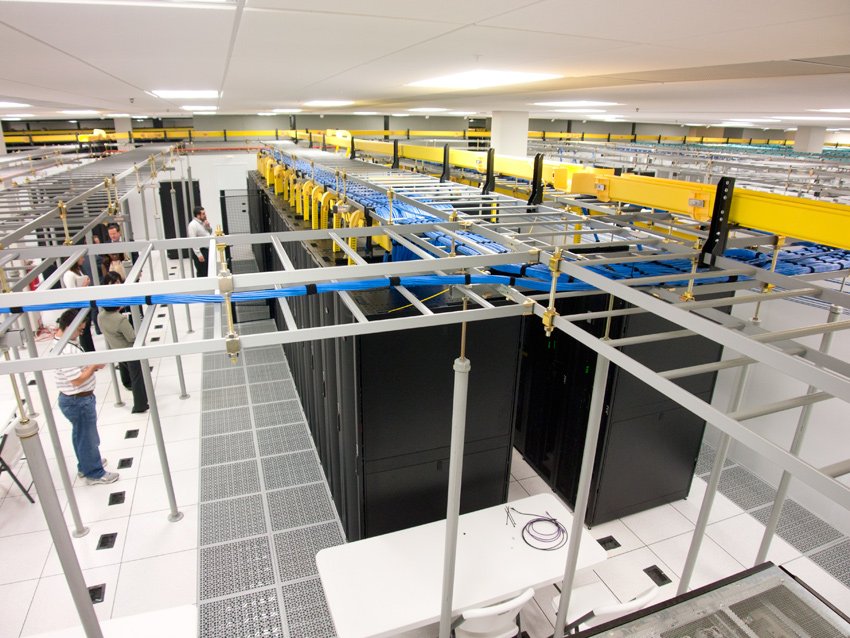

MPO/MTP breakout optical cables are widely used in large data centers, cloud computing, high speed networks and other fields. Its high density, high capacity and high reliability make it an important choice for data center layout optimization.
High grade optical fiber has excellent bending resistance and compression resistance, offering state-of-the-art multi-fiber and mechanical performance.

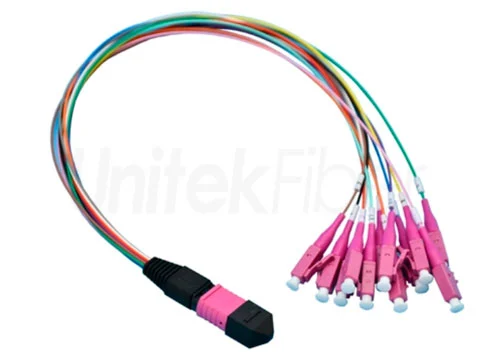

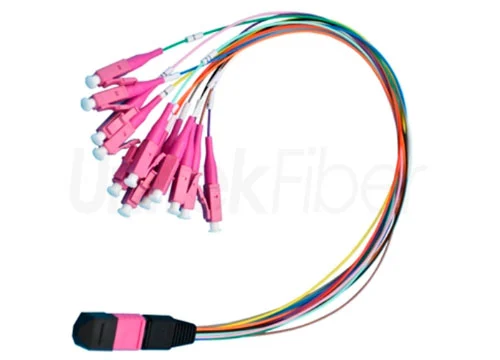

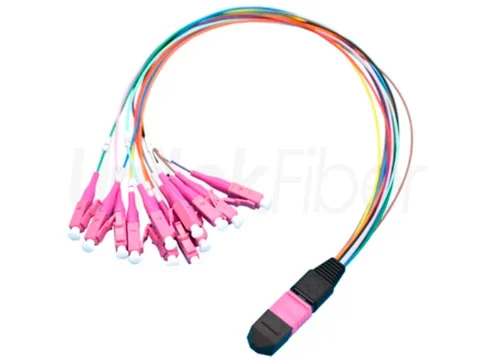

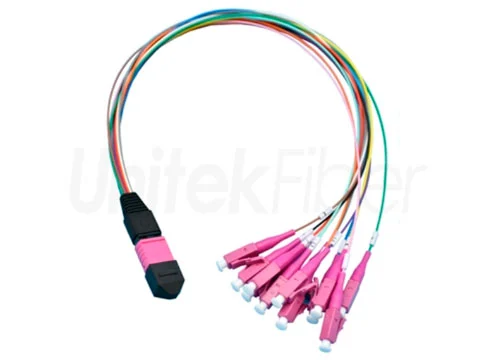

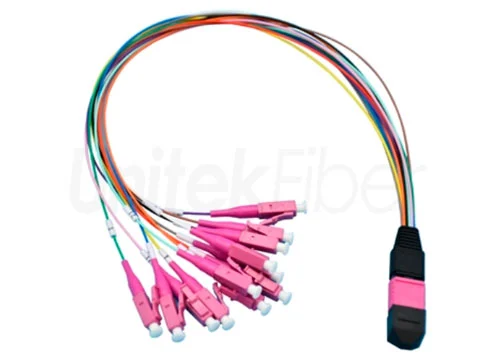

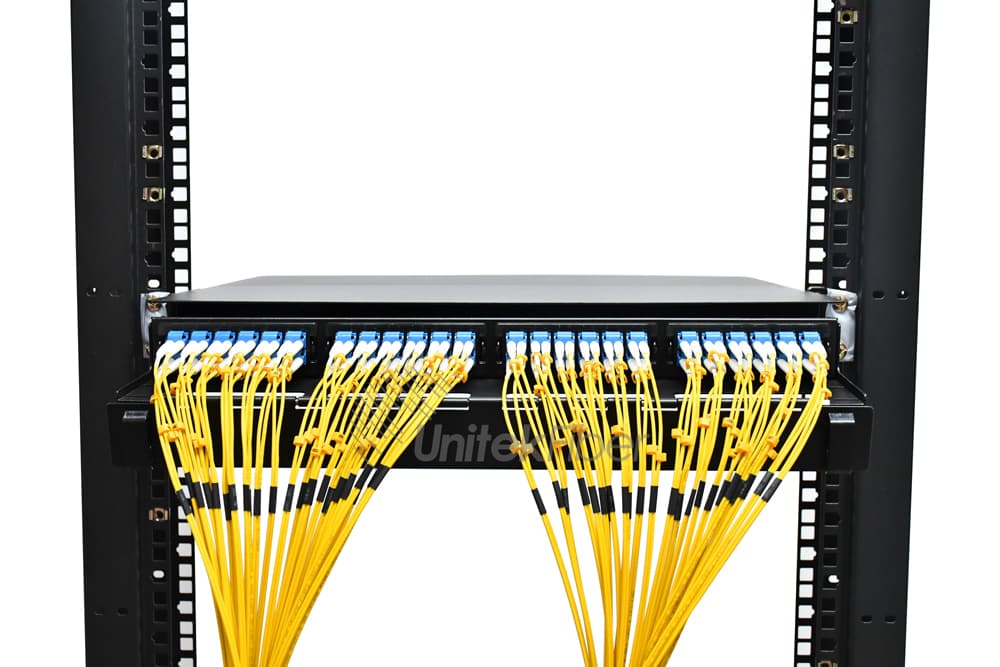

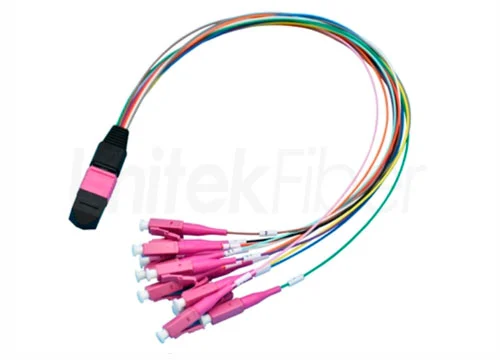

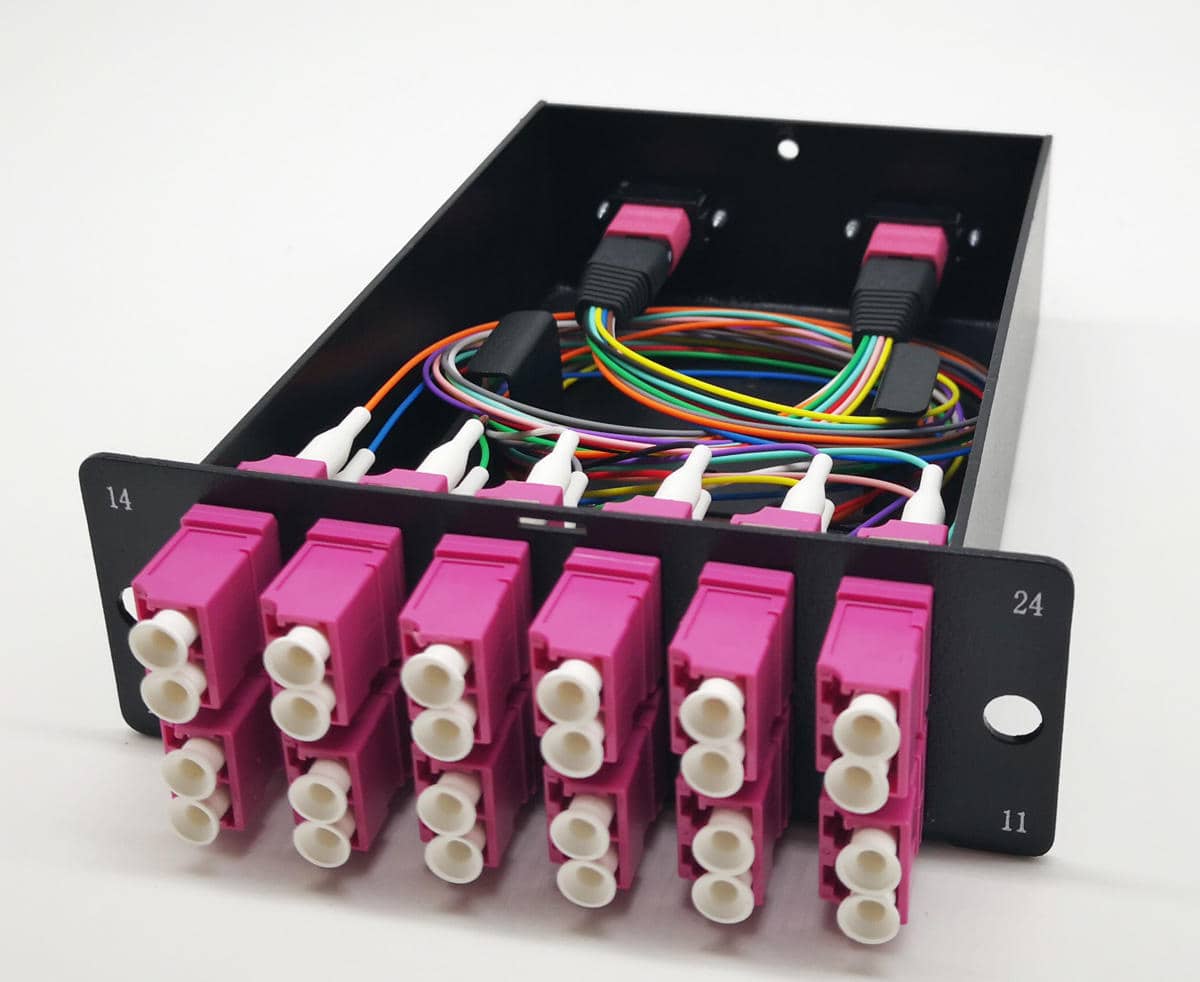

MTP/MPO-LC breakout optical cable is suitable for scenarios where multiple devices need to be connected in the computer room or data center, and can provide advantages such as high density, high bandwidth and low insertion loss. At the same time, by using modular MTP/MPO-LC branch cables, the installation and maintenance process can also be simplified.
MTP is a kind of high performance MPO connector with multiple innovative design.
They are passive and used for the optical transmission of signals. No rated voltage is involved.
Our factory has dug in this industry for many years and sold to many countries in the world.
Yes, it could be customized.
We have professional QC to control quality before shipment.
Connector Technical Parameter
Model | MM | |
Connector A : MPO/MTP | ||
Insertion Loss | Standard | ≤0.70dB |
Elite Low Loss | ≤0.35dB | |
Return Loss | PC≥25dB | |
Test Wavelength | 850nm&1300nm | |
Connector B: LC | ||
Insertion Loss | Standard | ≤0.30dB |
Return Loss | PC≥35dB | |
Test Wavelength | 850nm&1300nm | |
Cable Dimensions and Constructions
Items | Descriptions | |
Optical Fiber | Fiber count | 12 |
Color | Optical Fiber Chromatography | |

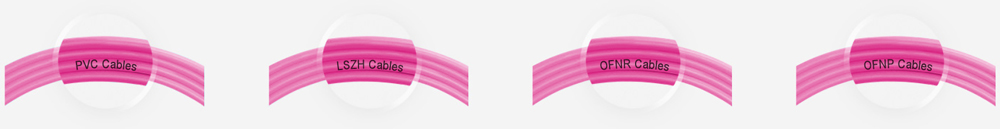

Sheath | Material | LSZH/OFNR/OFNP |
Color | Blue、Orange、Green、Brown、Grey、White、Red、Black、Yellow、Purple、Pink、Aqua | |
Diameter | 0.9±0.05mm | |

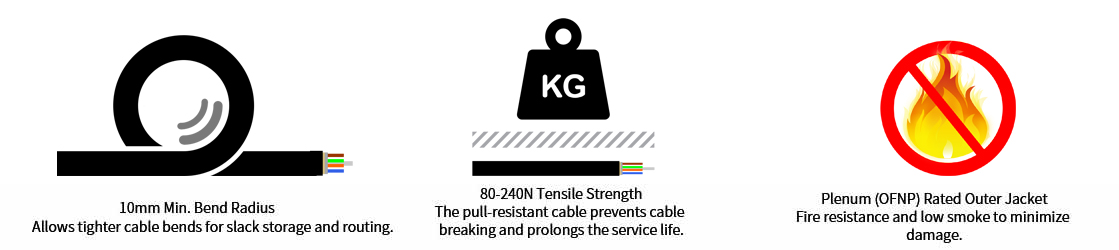

Mechanical and Environmental Characteristics
Items | Descriptions | |
Tensile | short-term | 6N |
long-term | 2N | |
Min.Bend Radius（Dynamic） | mm | 50 |
Min.Bend Radius（Static） | mm | 30 |
Operating Temperature | - 2 0 ℃-+ 6 0 ℃ | |
Temperature Range | - 2 0 ℃-+ 6 0 ℃ | |
