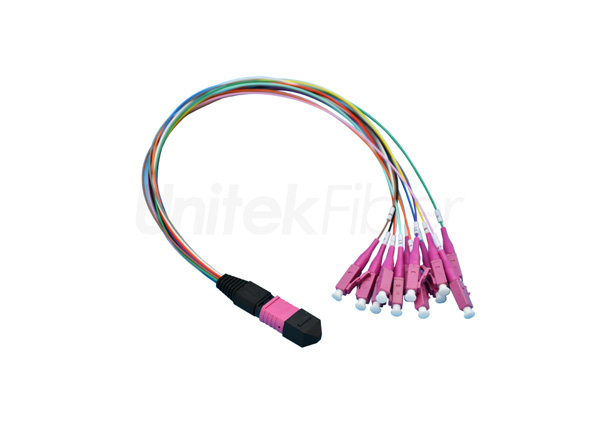

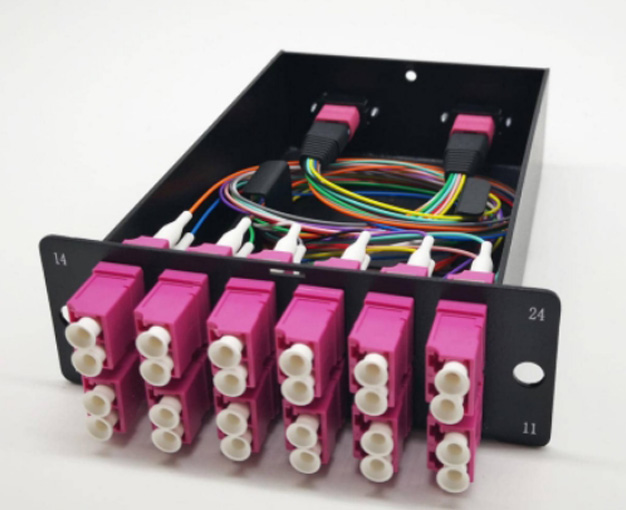

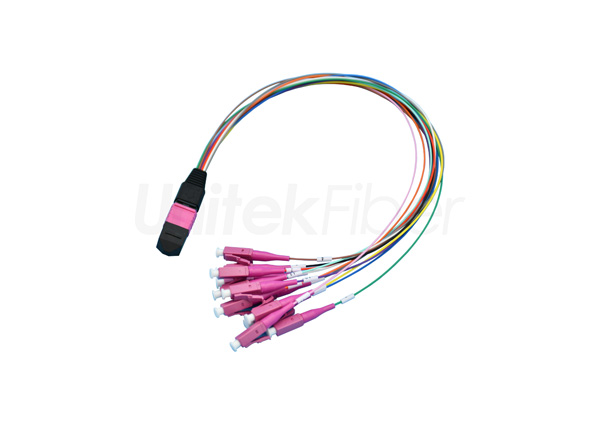

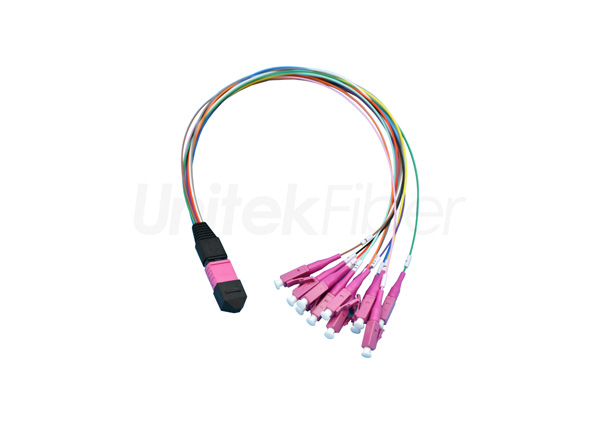

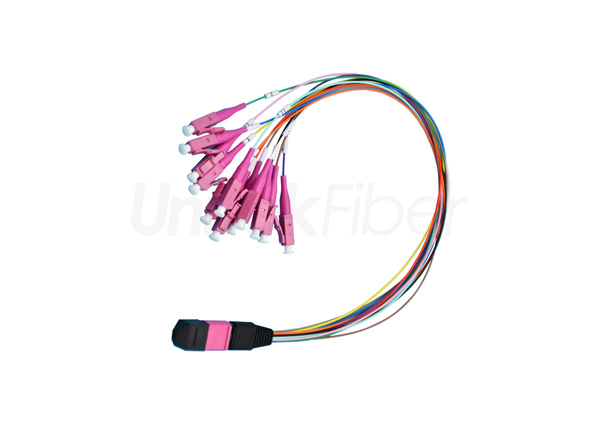

The OM4 Fanout MPO/MTP - 12*LC fiber patch cord uses a Corning 50/125 um fiber and has a Aqua, Plenum Jacket (OFNP) features. This MPO/MTP-LC fiber patch cord is a short length fiber patch cable, It is usually 0.3 meters, so MPO/MTP fiber patch cord is used in plug-and-play cassettes for multi-fiber to single-fiber drop interconnects. And the MPO/MTP fiber patch cord in the cassettes is usually the male MPO/MTP fiber patch cord.
There are many types of branch MPO/MTP fiber patch cords, including ribbon MPO/MTP fiber patch cords and bundled MPO/MTP fiber patch cords. The tails of the branch MPO/MTP fiber patch cords are branched through the splitter. Generally, it can branch out 8~24 core and 0.9mm or 2.0mm optical cable branches. The connector type is specified by the customer. FC, LC, SC, ST and other types are optional. The total length of the MPO/MTP fiber patch cords or the branch length and other requirements are according to the customer to choose. UnitekFiber supplies this MPO/MTP fiber optic patch cord to provide a variety of applications for all networks and devices requiring 100G modules, including the CFP, CFP2 and CFP4 series.

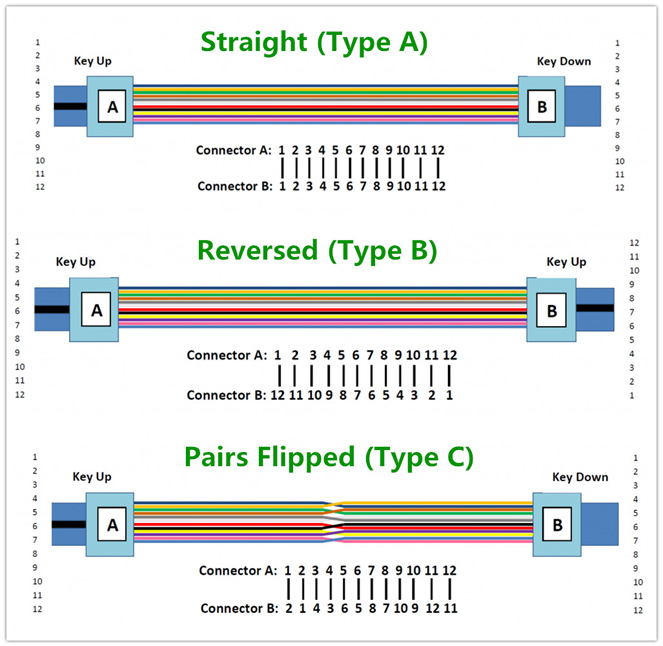

There are three polarities of MPO/MTP fiber optic Patch Cord - Type A, Type B and Type C.

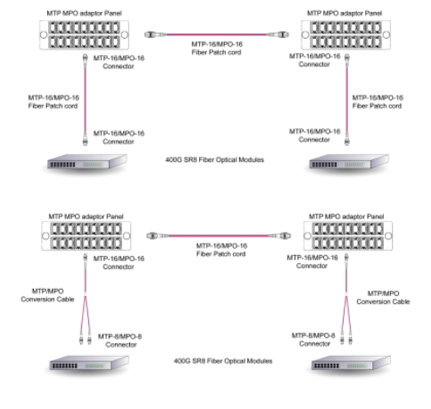

In terms of fiber optic cabling, UnitekFiber supplies a series of branch MPO/MTP to LC fiber optic patch cords to help you achieve rapid conversion from high-speed ports MTP/MPO fiber patch cords to low-speed ports LC fiber patch cord on the data center switching platform. In addition, our MPO/MTP - LC fiber patch cord can maximize the use of data center space and is easy to install, saving time and costs.
Yes, you can. We supply customized label on the cable.
Type B
MPO/MTP connectors can either be male or female, often referred to as the gender type of a connector. The male connector has pins, whereas the female connector has no pins.
Yes. We supply OEM service. Any concern, please feel free to contact us.
Yes, we can.
Connector Technical Parameter
Model | MM | |
Connector A : MPO/MTP | ||
Insertion Loss | Standard | ≤0.70dB |
Elite Low Loss | ≤0.35dB | |
Return Loss | PC≥25dB | |
Test Wavelength | 850nm&1300nm | |
Connector B: LC | ||
Insertion Loss | Standard | ≤0.30dB |
Return Loss | PC≥35dB | |
Test Wavelength | 850nm&1300nm | |
Cable Dimensions and Constructions
Items | Descriptions | |
Optical Fiber | Fiber count | 12 |
Color | Optical Fiber Chromatography | |
Sheath | Material | LSZH/OFNR/OFNP |
Color | Blue、Orange、Green、Brown、Grey、White、Red、Black、Yellow、Purple、Pink、Aqua | |
Diameter | 0.9±0.05mm | |
Mechanical and Environmental Characteristics
Items | Descriptions | |
Tensile | short-term | 6N |
long-term | 2N | |
Min.Bend Radius（Dynamic） | mm | 50 |
Min.Bend Radius（Static） | mm | 30 |
Operating Temperature | - 2 0 ℃-+ 6 0 ℃ | |
Temperature Range | - 2 0 ℃-+ 6 0 ℃ | |
