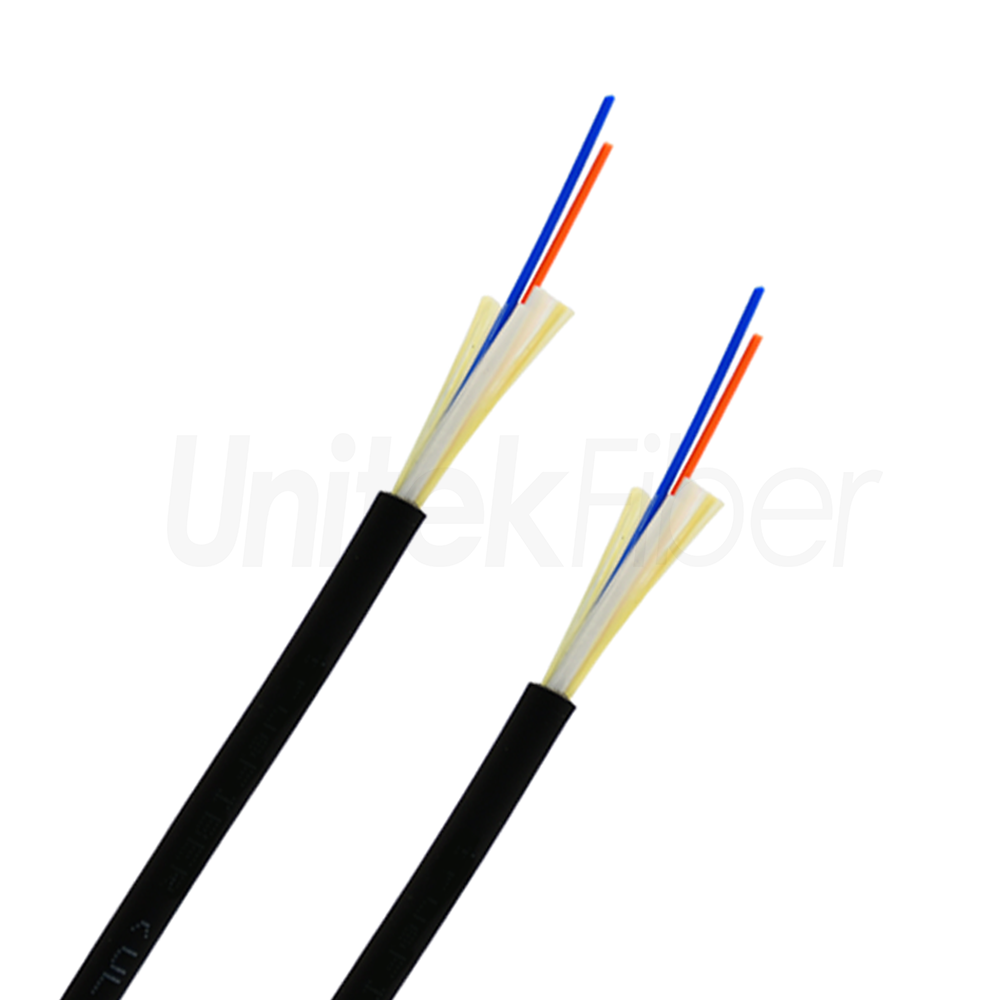

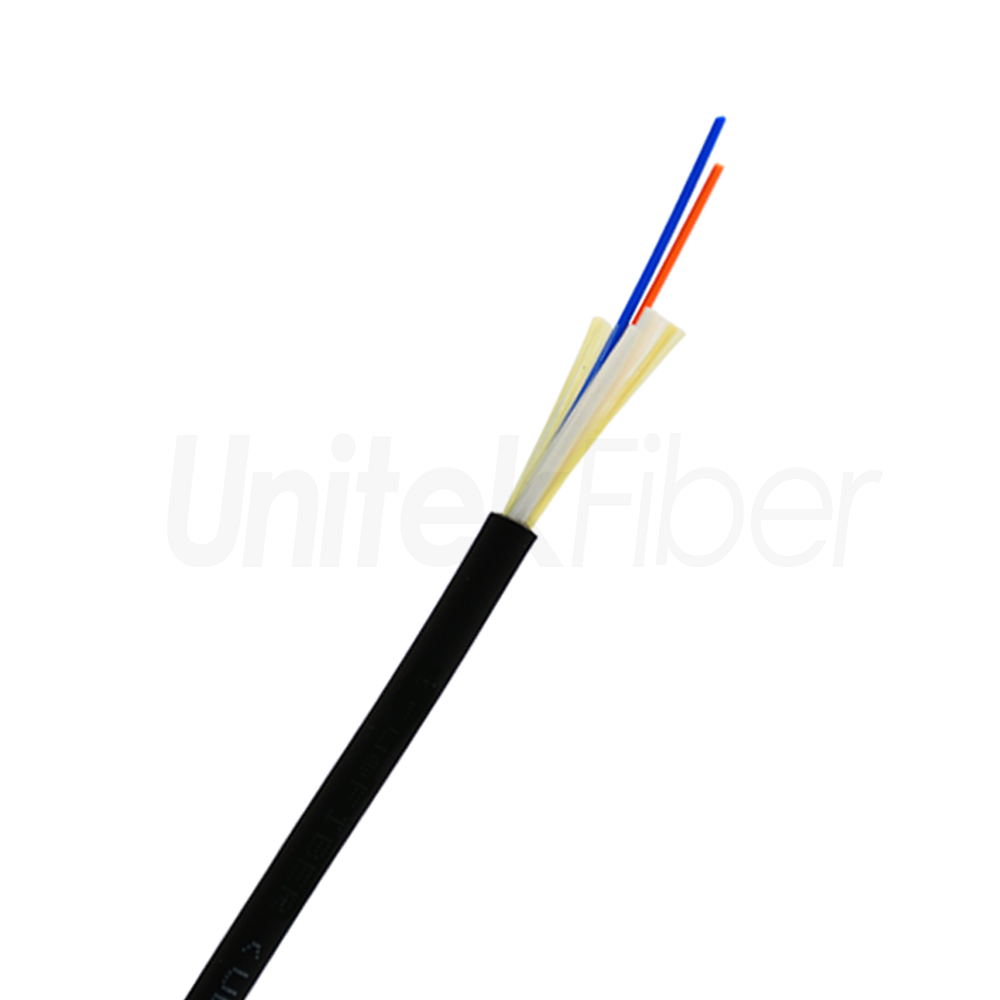

UnitekFiber’s 12cores multimode OM4 fiber optic drop cable ensures stable, high speed data transfer for short reach network links. Boasting a compact 6.2mm diameter, the fiber optic drop cable enables routing in small spaces while satisfying rigorous network performance standards. Equipped with a 0.9mm tight buffer, this distribution fiber optic drop cable supports direct connector termination, eliminating the need for extra buffer tubes or splicing trays, simplifying installation and reducing labor costs. Plenum rated outer jacket provides reliable flame-retardant protection, effectively preventing fire spread through vertical pathways like building riser shafts and elevator hoistways to adjacent floors. This versatile solution is well-suited for data centers, intra-building backbone cabling, Fiber to the Home (FTTH) deployments and other similar applications.

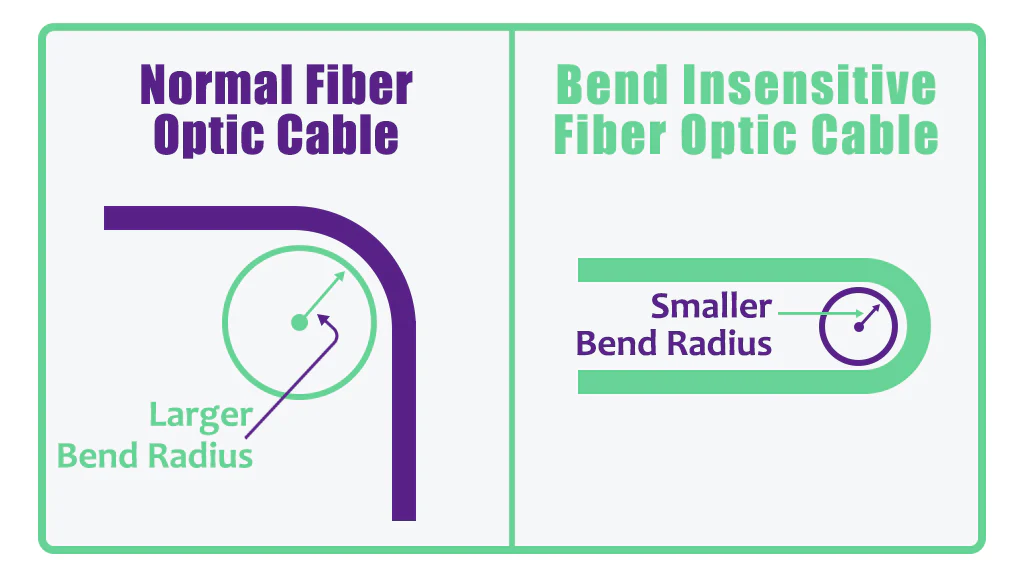

Multimode OM4 50/125um Corning® glass has an ultra-bendable, laser optimized core and cladding. UnitekFiber 's Multimode OM4 fiber optic drop cable, laser optimized MMF 10 Gigabit speeds to 550m Meters and 40/100 Gigabit speeds to 150 Meters, 850/1300nm operating wavelength. Meanwhile, our multimode distribution fiber optic drop cable is encased with aramid yarn, a tight buffer cable construction with a 7.50mm minimum bend radius for tight enclosures and sharp turns. The 6.2mm OD (overall diameter) cable jacket supports high density applications.
UnitekFiber's Bulk drop cable offers multiple jacket optional, such as PE, LSZH, PVC, PVC-OFNR and highest fire resistance PVC-OFNP. If low smoke and non-toxic emissions are a primary consideration, then the LSZH outer sheath can be selected. OFNR designed for vertical runs, and OFNP designed for plenum runs. In addition to providing customized jacket, UnitekFiber as a manufacturer, we can also offer customized jacket colors to support your fiber optic business.
Distribution fiber optic drop cable are suitable for optical fiber telecommunications networks,data center, broadband networks, CATV networks, indoor applications, MPO/MTP high density wiring systems or used in fiber pigtails and fiber patch cords as interconnect lines of equipment and used in optical connections in optical communication rooms and optical distribution frames.
UnitekFiber, a professional fiber optic cable manufacturer, provides comprehensive customized services. Our distribution fiber optic drop cable covers 1 to 144 core counts: 2/6/12/24cores are ideal for most indoor|outdoor networking scenarios, while 48/96/144cores options are featuring multi-subunit tube designs to specialized construction requirements. We also offer a full range of outer jacket materials, including LSZH, PVC, PVC-OFNR, and PVC-OFNP or ect. In terms of fiber types, both singlemode and multimode are available. Every fiber optic drop cable undergoes 100% factory testing to guarantee exceptional product quality and performance.
Yes, it is suitable for use as a backbone distribution drop cable for buildings.
Yes, it can be used as a multicore fiber patch cord and fiber pigtail.
The core count range is 2-48 cores (with a broader range of 2-288 cores for breakout indoor fiber optic cables in general).

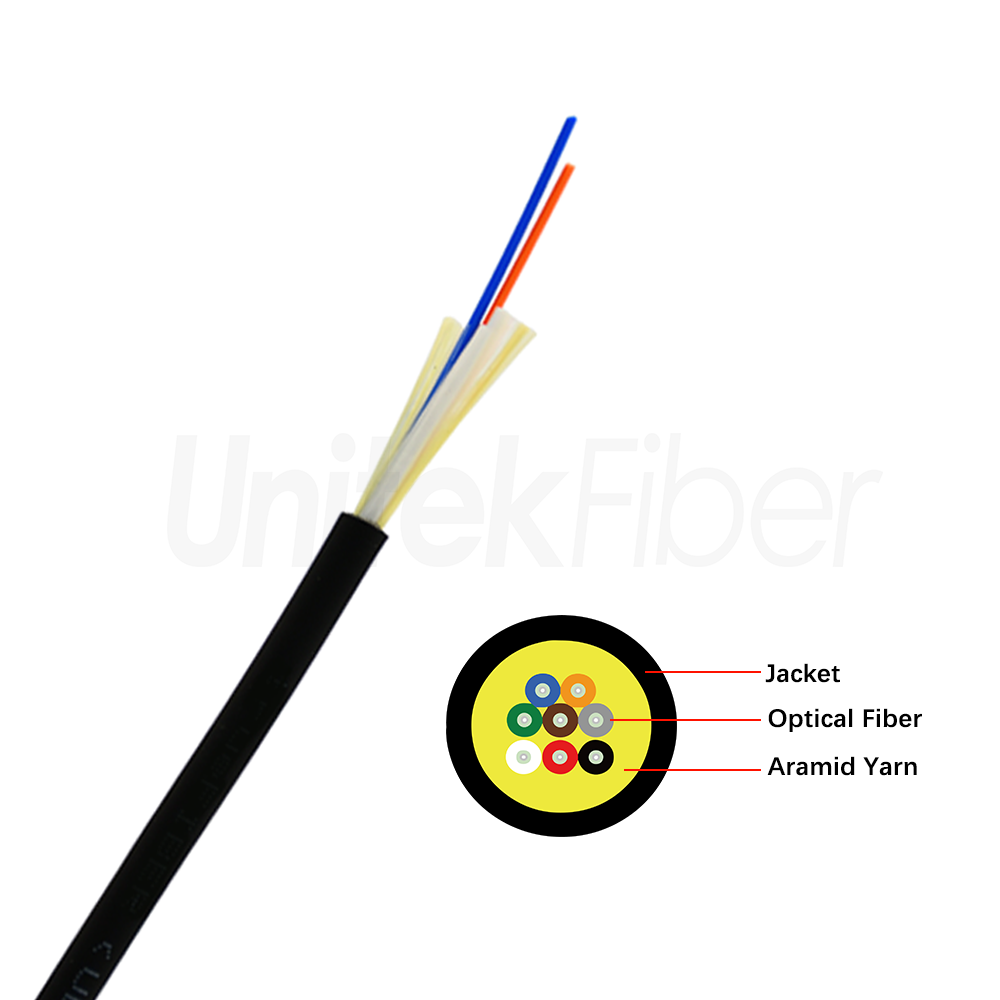

Aramid yarn increases the tensile strength and bending performance of the drop cable, and ensures the stability of the fiber optical cable in complex environments by acting as a reinforcing member to protect the optical fiber.
Yes, it can be used in plenum environments with PVC-OFNP jacket, as it is suitable for routing between telecommunications rooms and connected cables in riser and plenum environments.
Chose this indoor outdoor drop cable for our enterprise network upgrade, and UnitekFiber’s quality doesn’t disappoint! The outer jacket is wear-resistant, while the aramid yarn reinforcement enhances tensile and compression resistance. It’s operated stably without signal interruptions since wiring.
As a procurement manager, safety and compatibility are my top priorities. This cable’s OFNR jacket meets fire rating standards and is fully compatible with our existing equipment. The 48C drop cable allows for future expansion, outstanding value for money.
Purchased this bulk drop cable for vertical wiring across multiple office buildings. It’s compact and lightweight, saving wiring space, and has a small bending radius that enables easy installation in narrow cable trays. Transmission performance is stable, and the construction team praises its usability.
Bought in bulk after a sample order. The drop cable transmit signals clearly, and the aramid yarn reinforcement prevents damage even in frequently moved scenarios. The Black OFNR jacket is ideal for office use.
Sourced this cable for server room renovation. The 12core drop cable meets multi-device interconnection needs. Work great with UnitekFiber.
