Why Are MPO/MTP Cables Essential for High Density Optical Networks?

MPO/MTP cables are indispensable to high-density, high-speed optical networks thanks to their multi-fiber integrated compact design, which realizes efficient parallel signal transmission while drastically saving space and streamlining cabling architecture. Equipped with high precision MPO/MTP connectors and factory pre-terminated craftsmanship, these MPO/MTP cables deliver low insertion loss, high return loss and stable signal transmission, perfectly catering to the interconnection needs of data centers, AI computing clusters and campus networks. Moreover, MPO/MTP optical cables support fast deployment, flexible network expansion and high bandwidth applications ranging from 40G, 100G to 400G and even higher rates. They minimize installation difficulty and long term maintenance costs, laying a reliable physical cornerstone for current and future optical interconnection systems.

The Role of MPO/MTP Cables in The New Era

Driven by the explosive growth of AI computing power, large-scale data center upgrades and the popularization of high speed networks (including 10GbE, 40G/100G and even 800G Ethernet), traditional single-fiber cabling solutions are increasingly unable to meet the stringent requirements of high density, large bandwidth and rapid deployment. As a specialized optical cable tailored for high-density optical interconnection, MPO/MTP fiber cable has become the preferred cabling solution for data centers, AI computing clusters and high-end campus networks. Relying on core strengths of high integration, fast transmission and easy deployment, it thoroughly solves the pain points of traditional cabling such as large space occupation, cumbersome construction and insufficient transmission rate, building a solid physical support for high speed optical interconnection.

MPO/MTP Cables: The Optimal Solution for Multi-Core Integration & Efficient Cabling

Many users still have an incomplete understanding of MPO/MTP fiber optic cables. Essentially, an MPO/MTP cable is a multi-core optical transmission system equipped with dedicated MPO/MTP connectors, and its core competitiveness lies in multi-fiber integration and fast interconnection, a defining feature that sets it apart from traditional single-fiber optical cables.

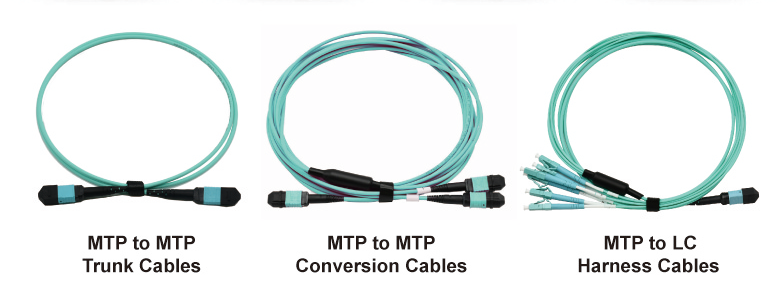

Unlike single-fiber cables that require separate termination and connection for each fiber strand, MPO/MTP fiber cables adopt miniaturized encapsulation technology to integrate 8, 12, 24 or more optical fibers into one compact rectangular interface. For example, a single 12fibers MPO/MTP optical cable can replace 12 independent single-fiber cables, saving nearly 90% of cabinet rack space, this is a critical optimization tool for space constrained scenarios like data centers. Additionally, the application of MPO/MTP fiber optic cables greatly simplifies cabling architecture, improving the overall tidiness and manageability of equipment rooms and reducing the difficulty of daily operation and maintenance.

Core Advantages of MPO/MTP Optical Cables

High performance MPO/MTP fiber cables stand out not only for high-density integration, but also for outstanding data transmission stability and efficiency, making them the optimal choice for high speed optical networks.

Exceptional Transmission Stability

The core of MPO/MTP optical cables adopts high-precision MT ceramic ferrules. By fixing optical fibers in a precision micro-hole array and realizing micron-level alignment through guide pins, the lateral offset error is controlled within ±0.5μm, effectively reducing optical signal attenuation. High-standard MPO/MTP products maintain insertion loss below 0.5dB and return loss below -60dB, ensuring uninterrupted stable transmission of high-speed signals.

In terms of physical structure, the MPO/MTP cable jacket is made of flame-retardant, wear-resistant and moisture-proof LSZH (Low Smoke Zero Halogen) or PVC materials, reinforced with a high strength aramid fiber core inside to resist large tensile force and extrusion pressure. It operates stably in a wide temperature range of -20°C to +70°C, withstands complex electromagnetic interference in equipment rooms, and adapts to diversified installation methods such as cable trays and conduits, with a service life of more than 15 years.

Superior High Speed Transmission Performance

MPO/MTP optical cables are fully compatible with high-speed network upgrade requirements, matching the bandwidth standards of OM3, OM4 and OM5 series multimode fibers. Among them, OM5 multimode MPO/MTP fiber cables boast a bandwidth of up to 4700 MHz·km, supporting 40G and 100G Ethernet transmission; single-mode MPO/MTP cables realize long-distance transmission exceeding 10 kilometers, making them ideal for inter-building and inter-campus backbone interconnection.

Furthermore, MPO/MTP fiber optic cables adopt a factory pre-termination process, with full termination and 100% optical performance testing completed before delivery. This eliminates complicated on-site splicing operations and achieves true plug-and-play deployment, cutting data center cabling time by 50%, greatly reducing construction complexity and labor costs, and avoiding signal instability caused by human errors in on-site construction.



Key Applications of MPO/MTP Cables

MPO/MTP fiber cables are mainly used in scenarios with strict demands for high-density layout and high-speed data transmission, covering core fields of modern optical communication.

Leaf-Spine Architecture of AI Data Centers

In the Leaf-Spine architecture of large scale AI data centers, the number of inter-cabinet optical fiber connections has surged exponentially. MPO/MTP pre-terminated systems enable fast deployment and build high-speed interconnection links between servers and switches, as well as between switch devices. In particular, 16fibers MPO/MTP cables are compatible with 800G optical modules, perfectly meeting the low latency, high bandwidth transmission needs of hyperscale computing clusters.

Network Backbone Links

In enterprise core data centers and campus backbone networks, MPO/MTP optical cables act as trunk links to realize high density interconnection between core equipment rooms and satellite equipment rooms in different buildings. This solution not only simplifies the overall cabling infrastructure, but also greatly improves port utilization rate, optimizing network resource allocation and daily management efficiency.

Specialized High Speed Communication Scenarios

In sophisticated application fields such as 5G fronthaul/midhaul networks, industrial automation communication and medical imaging transmission, MPO/MTP fiber optic cables rely on their high-density design and strong anti-interference performance to meet high speed signal transmission needs in complex environments. The multi-core integration feature not only realizes large-capacity data fast transmission, but also realizes efficient cabling in narrow spaces, enhancing network deployment flexibility and scalability, and providing a stable support for applications with extremely high reliability and performance requirements.

Future Development Trends of MPO/MTP Cables

With the large scale deployment of CPO (Co-Packaged Optics) technology and the exponential growth of AI computing power demand, the status of MPO/MTP fiber cables has been further elevated, evolving from auxiliary components of optical modules to core components of optical interconnection systems.

In the future, MPO/MTP cables will develop towards higher fiber core count, faster transmission rate and smaller miniaturization size to adapt to the transmission requirements of 1.6T optical modules and provide strong support for the high-speed optical interconnection industry. Compared with traditional single fiber cabling, MPO/MTP optical cables feature high density, fast deployment and excellent reliability, presenting the long term value of "one-time installation, long term efficient operation", which significantly reduces the cost of later network operation and maintenance.

Conclusion

MPO/MTP optical cables have become a transformative solution for modern high-speed and high-density optical networks. Through multi-fiber integrated compact design, plug and play fast deployment and stable high performance transmission, they break the limitations of traditional single-fiber cabling and lay a robust physical foundation for current and future large capacity data transmission.

UnitekFiber is a professional manufacturer of MPO/MTP fiber optic cables, providing a full range of high quality products with diverse fiber counts and length specifications. These MPO/MTP cables meet the diversified high density and high speed optical interconnection needs of data centers, enterprise networks and high performance computing scenarios, while ensuring low insertion loss, stable signal transmission and efficient rapid deployment.
