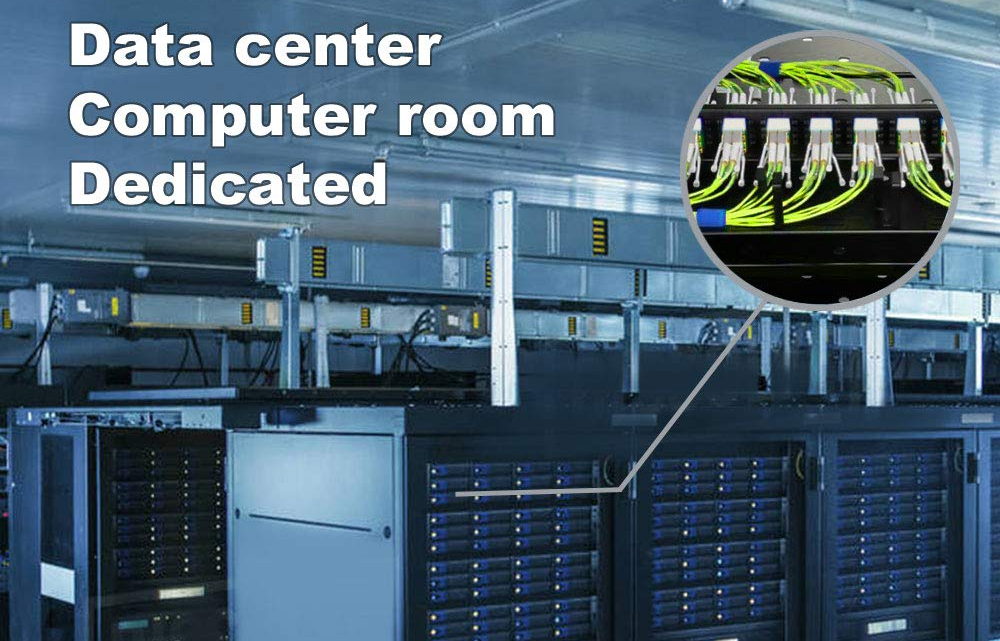

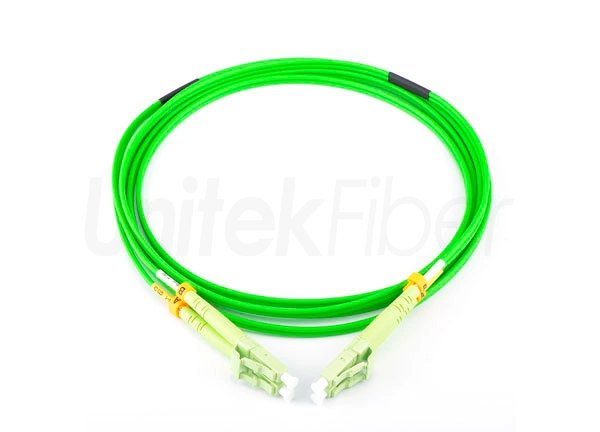

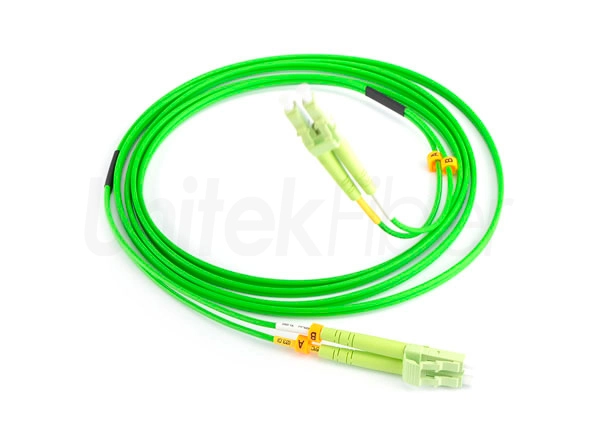

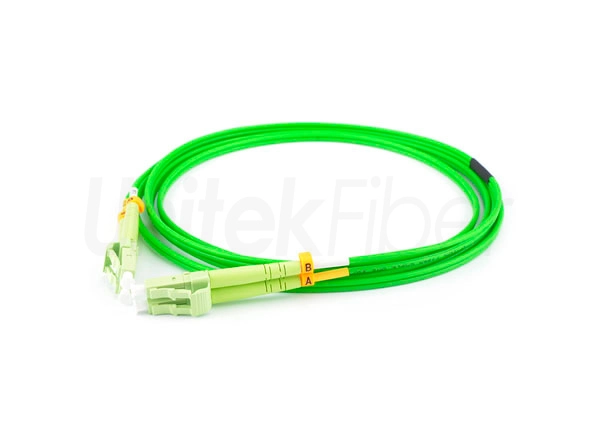

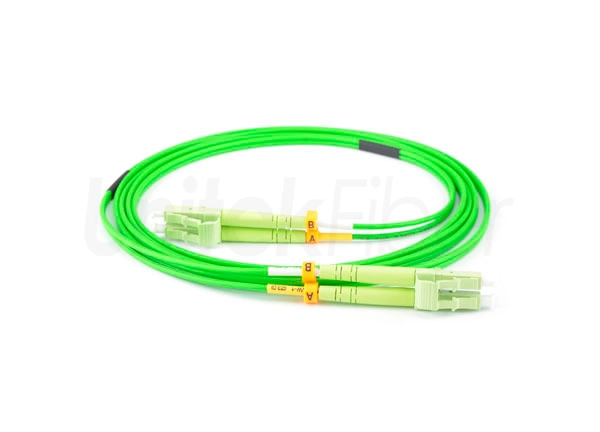

With the continuous improvement of data center requirements for transmission rates, OM5 fiber optic patch leads are beginning to be used more and more. OM5 fiber patch lead draws on the wavelength division multiplexing (WDM) technology of single-mode fiber to extend the available wavelength range during network transmission, and can support 4 wavelengths on a 1-core multimode fiber, reducing the number of fiber cores required to 1/4 of the previous, which greatly reduces the cost of network wiring.
lHigh reliability ;
lCE & RoHS compliant ;
l100% connectors tested ;
lRepeatability: >1000 times ;
lDeliery 100% passed products ;

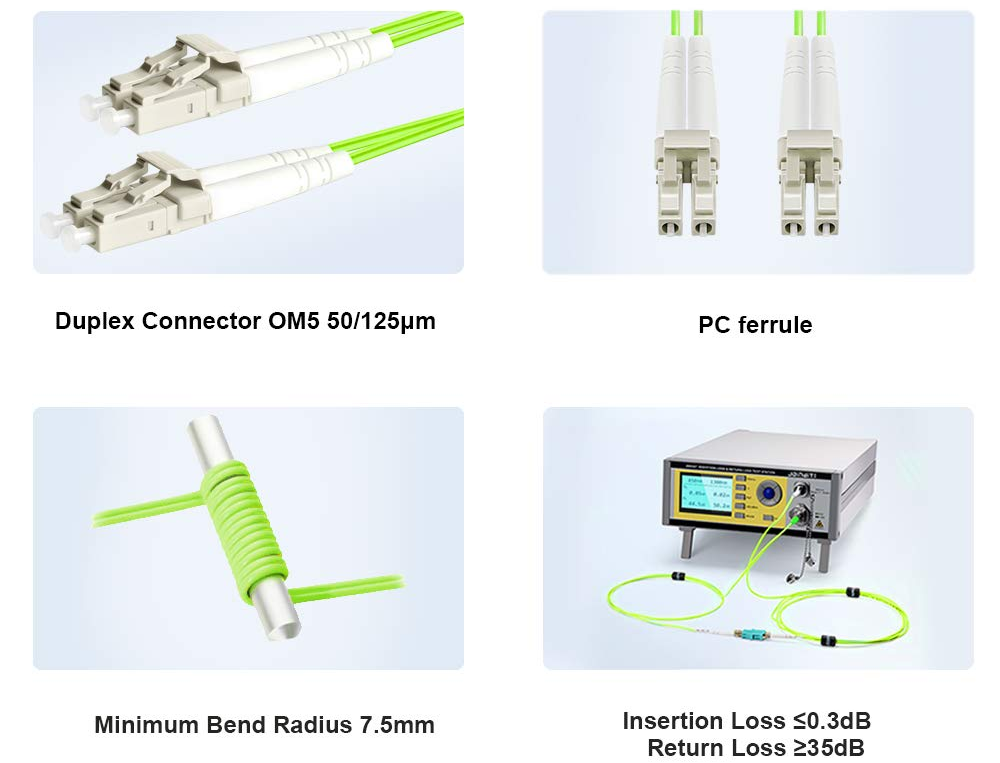

lInsertion Loss(SM): Typical<0.2dB, Max<0.3dB ;
lReturn Loss: UPC>50dB, APC>60dB ;
lTelecommunications
lLocal Area Network (LAN)
lFiber to the home (FTTH)
lOptical patch panels
lTesting Instruments
lCATV
Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 | ||||||||
SM | MM | SM | MM | SM | MM | SM | |||||||
PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC | ||
Insertion loss(typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 |
Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.
Normally about 7 days after confirmation.
Normally 7-20 days depends on products and order quantities.
Yes, we provide customized service and can do artworks including printing, logo, etc. for you.
YES, OEM is welcomed.
Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
