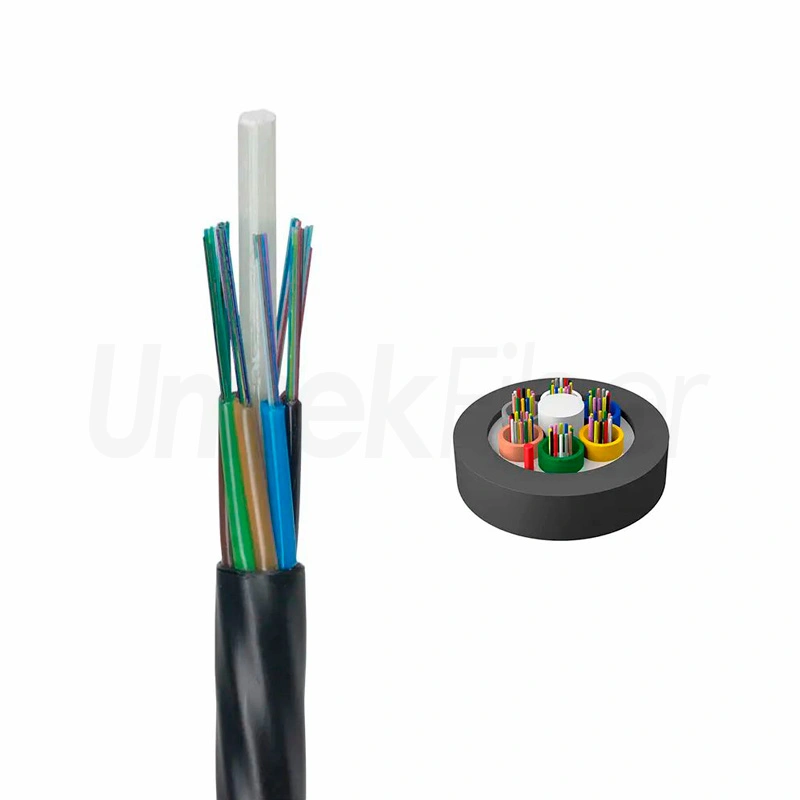

The GCYFTY fiber optic cable is a type of loose tube cable that consists of jelly compound tubes containing multiple fibers, which are then surrounded by Aramid yarn strength members and an outer jacket for protection. It is designed for outdoor use in harsh environments, including exposure to moisture, extreme temperatures, and mechanical stress.

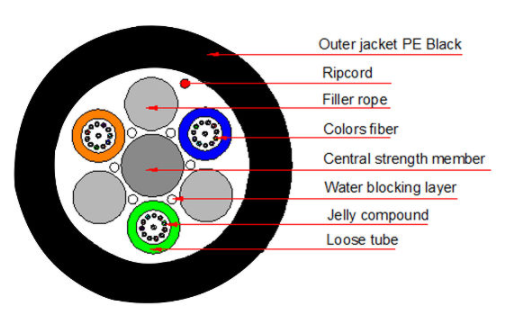

The basic structure of micro air-blown fiber optic cable GCYFTY includes the following parts:
1. Optical fiber: Fiber optic is the core component of micro air-blown fiber optic cable GCYFTY, which is responsible for the transmission of optical signals.
2. Optical fiber loose tube: The optical fiber loose tube is a component to protect the optical fiber. It is made of high-strength, high-modulus plastic material and has good resistance to external forces and protection. The optical fiber loose tube is filled with several optical fibers, and the safety and transmission performance of the optical fiber are guaranteed through layered design and multi-layer coating.
3. Waterproof compound: the loose tube is filled with jelly compound to protect the optical fiber core from water.
4. Outer sheath: The outer sheath is the outermost part that protects the entire fiber optical cable. It is made of HDPE materials and has special properties such as high toughness, wear resistance, ozone resistance, climate change resistance and ultraviolet rays, and can effectively resist harsh conditions.
5. Air blowing tube: The air blowing fiber tube is one of the special designs of the air blown micro fiber optic cable GCYFTY. Its function is to prevent the loss and breakage of the fiber optic cable during laying, create a relatively stable and safe channel for the fiber optic cable, and ensure the transmission performance and performance of the fiber optic cable.
lIt adopts air blown fiber double-sleeve technology, which has excellent tensile performance and protection performance.
lUsing micro-molding technology and UV curing technology, it has excellent mechanical properties and environmental adaptability.
lThe optical fiber loose tube adopts a new barrel structure design, the diameter of the fiber optical cable is smaller, and the flexibility is stronger.
lThe fiber optical cable core adopts a layered cladding structure, which has better pressure resistance and temperature performance.
lIt has ultra-long transmission distance and large-capacity transmission capacity, and supports transmission at various rates such as 10G, 40G, and 100G.

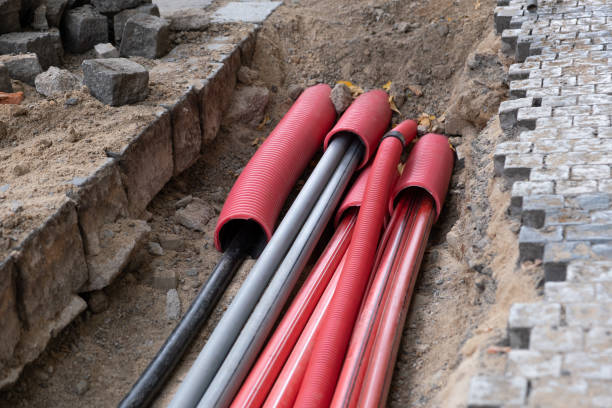

The GCYFXTY fiber optic cable is a versatile and reliable solution that can be used in a variety of applications where high-speed data transmission and reliable connectivity are required. In telecommunications networks, it is an ideal choice for both local and wide area network applications. It is also widely used in cable television systems to deliver digital TV and internet services. In industrial automation systems, the cable provides fast and reliable connectivity for communication between machines and control systems. Overall, the GCYFXTY fiber optic cable offers excellent performance, superior durability, and versatility for a wide range of applications, making it a reliable choice for outdoor loose tube cable applications.

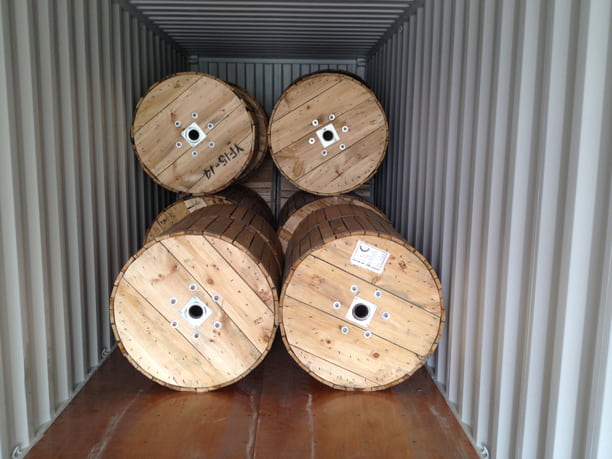

During the transportation of fiber optic cable, the packaging and transportation conditions need to be strictly controlled to ensure the integrity and safety of the pipeline. During transportation, packaging materials need to be resistant to vibration and impact. Fillers are added to the inside of the optical cable so that the optical cable will not be displaced or damaged after packaging.
In General, single mode fiber is used for long distances or higher bandwidth needs. Multimode fiber is used for short distances or less bandwidth intensive applications.
Mostly used in Local Area Network (LANs), high density data center, FTTH Telecommunication.
If you need sample to test, please contact our sales team or email us sales@unitekfiber.com.
Yes. We supply OEM service. You can send us your drawing.
Regular maintenance, including periodic inspection, cleaning, and replacement of worn or damaged components.
