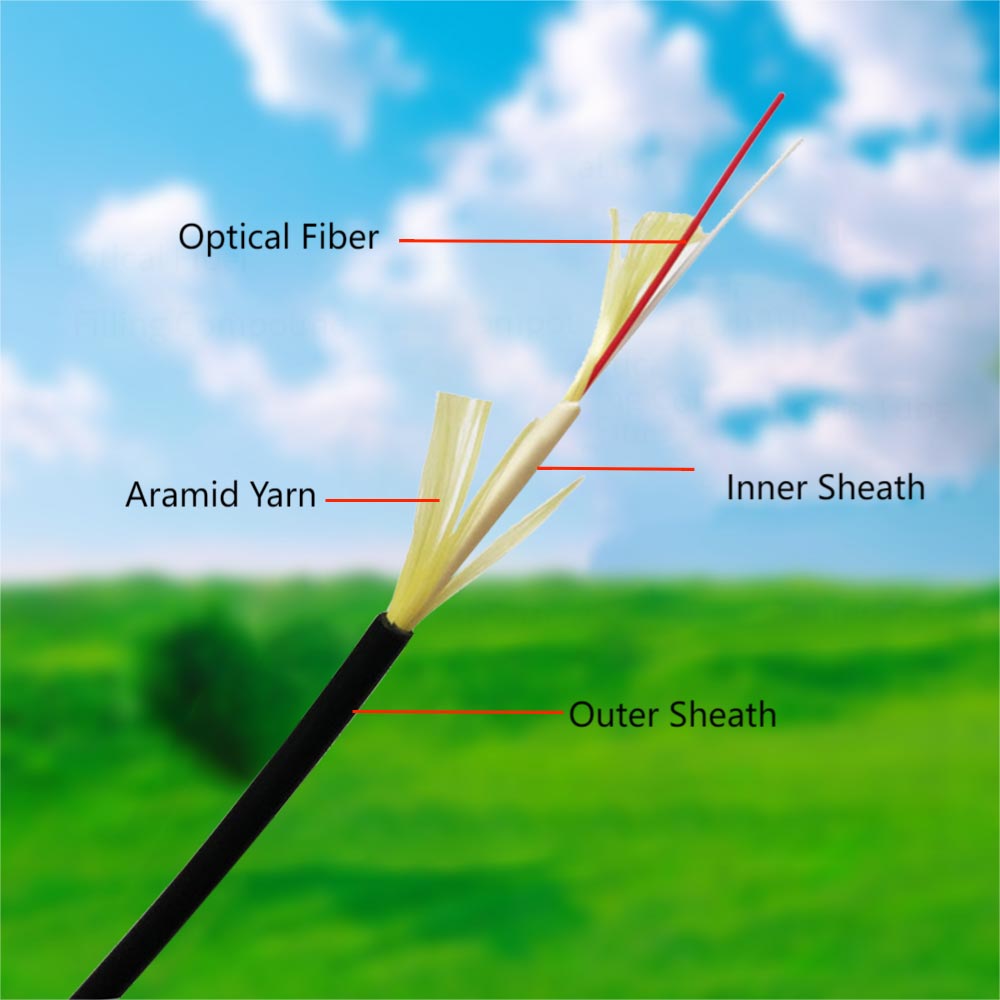

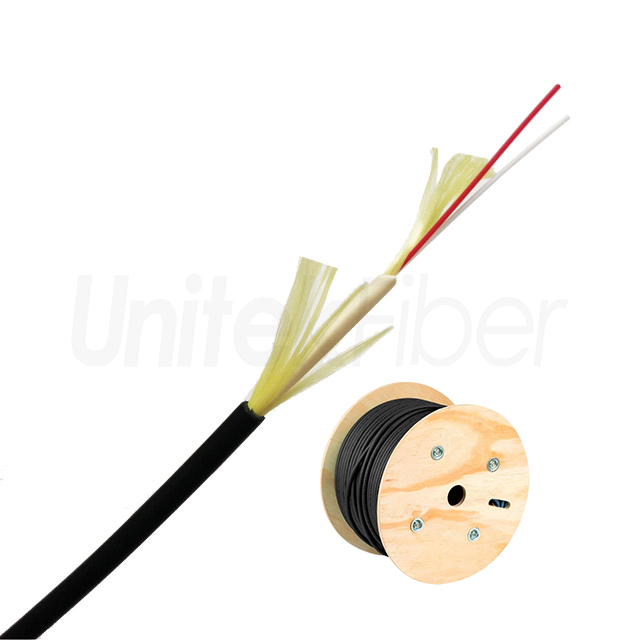

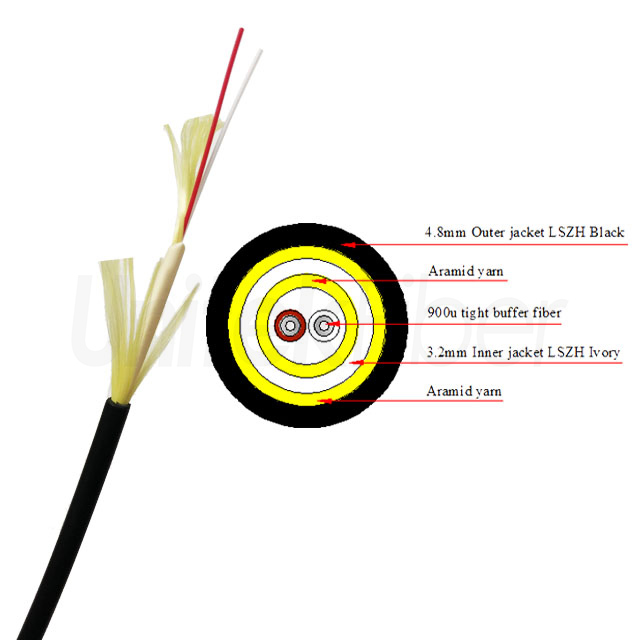

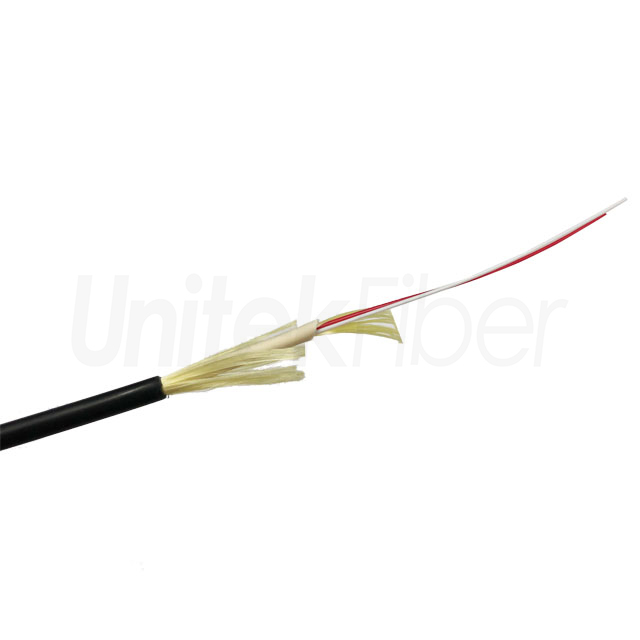

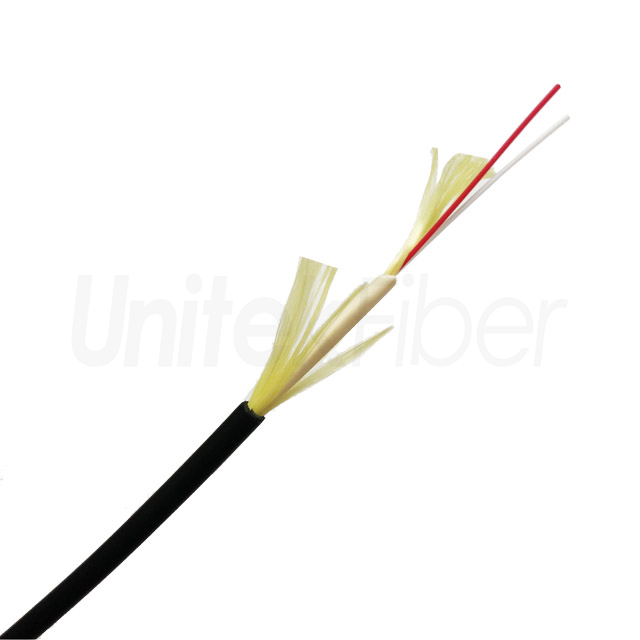

The indoor/outdoor tight buffer fiber drop cable is a compact and versatile fiber optic cable designed for connecting homes or buildings to the main fiber network. Tight buffer fiber drop cable has a small diameter of 4.8mm, making it easy to handle and install. The tight buffered fiber drop cable are generally constructed with 0.9mm tight buffered fibre surrounded by Aramid yarn or glass yarn strength members jacketed in an double LSZH outer jacket. This tight buffer fiber drop cable is suitable for both indoor and outdoor applications, providing a reliable and efficient solution for extending fiber connectivity.
The tight buffer fiber drop cable specifically designed for both indoor and outdoor applications, This tight buffer fiber drop cable features a durable construction that can exposure to sunlight, moisture, and temperature variations, ensuring reliable performance in any environment. With tight buffer fiber drop cable small diameter and tight buffer design, it offers flexibility and easy installation in tight spaces like duct or wall grooves. The indoor/outdoor tight buffer fiber drop cable guarantees dependable connectivity, enabling high-speed data transmission.
The Indoor/outdoor fiber drop cables usually use aramid yarn or glass yarn.
Aramid yarn has excellent tensile strength and rigidity, which can effectively increase the durability and tensile capacity of fiber optic cables. When external force or tension is applied, aramid yarn plays a role in dispersing and absorbing stress, effectively preventing the fiber optic cable from being broken or damaged.
Glass yarn is also a commonly used reinforcing material with high hardness and compression resistance, which can provide an extra layer of protection to prevent some rodents (such as mice) from chewing fiber optic cables, causing signal interruption or fiber damage.
1. OFNR (Optical Fiber Nonconductive Riser) are designed for riser applications. They are used in spaces inside a building that connect floors, such as vertical zones or spaces between floors. These OFNR fiber optic cables are engineered to prevent the spread of fire from one floor to another within a building.
2. OFNP (Optical Fiber Nonconductive Plenum) are used inside buildings in plenum areas, the areas between a ceiling and the floor above it, where space is reserved for the circulation of air. At the same time, this OFNP fiber optic cable will not emit toxic smoke or steam.
| No. of cable | 2 | |
| Fiber Model | G.6557A1/G.6557A2 | |
| Strength Member | Material | Aramid yarn |
| Tight buffer | Material | LSZH |
| Color | White | |
| Thickness ( ±0.03) mm | 0.32 | |
| Diameter ( ±0.05) mm | 0.9 | |
| Inner Sheath | Material | LSZH |
| Color | Ivory | |
| Thickness ( ±0.05) mm | 0.45 | |
| Diameter (± 0.1 ) mm | 2.9 | |
| Outer Sheath | Material | LSZH |
| Color | Black | |
| Thickness (± 0.1 ) mm | 0.5 | |
| Cable Diameter ( ±0.1 ) mm | 4.5 | |
| Cable Weight (±2) kg/km | 20 | |
| Min. bending radius | Without Tension | 15X Cable-φ |
| Under Maximum Tension | 30X Cable-φ | |
| Temperature range (°C) | Installation | -20~+60 |
| Transport& Storage | -30~+70 | |
| Operation | -20~+60 | |
The indoor/outdoor fiber drop cable can withstand outdoor conditions while also meeting requirements for indoor use.
The difference between tight buffered and loose tube fiber optic cables is the construction. In tight buffered fiber optic cables, there isn't a gap between the fibre coating and cladding layers. Whereas loose tube fiber optic cables have a gap, either filled with gel or are loose in the cable.
If you need sample to test, please contact our sales team or email us sales@unitekfiber.com.
The indoor/outdoor fiber drop cable is 4.5 to 4.8 millimeters in diameter.

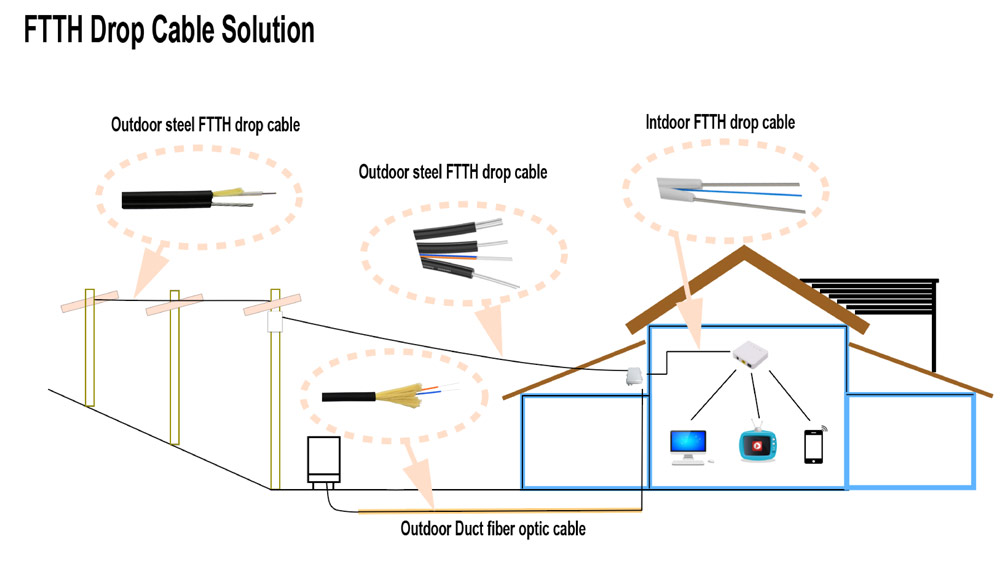

For aerial installation, the indoor/outdoor fiber drop cable can be hung from an existing utility pole.
The tight buffer fiber drop cable easy to route through tight spaces and corners.
The tight buffer fiber drop cable has been in use for over a year, and there have been no signs of wear and tear.
The tight buffer fiber drop cable has proven to be versatile and suitable for both indoor and outdoor use.
The indoor/outdoor tight buffer fiber drop cable for its high-performance capabilities, and it didn't disappoint.
I initially used it for an outdoor extension, but later decided to route it indoors. The indoor/outdoor tight buffer fiber drop cable's design flawlessly catered to both scenarios, ensuring reliable connectivity regardless of the installation environment.
