Air Blowing Micro fiber Optic Cable

Air Blowing Micro fiber Optic Cable

Product Introduction
Air Blowing cable technology is a new way to make significant improvements in traditional fiber optic systems, facilitating the rapid adoption of fiber optic networks and providing users with a flexible, secure, cost-effective cabling system.
The blowing system consists of micro-tubes (single micro-tubes and micro-tubes), micro-cables, fittings and air blowing equipment.
More>
Air Blowing cable technology development
  • In 1982, BT invented the Air blown cable technology.
  • In 1987, the British company Berry invented the single Air blown fiber technology.
  • In 1988, the world's first installation of indoor blown fiber was achieved.
  • In 1993, the entire system was developed and officially named as a Air blown fiber system and commercialized.
  • In 1997, the Netherlands air blown 10pcs of ø10mm micro tubes in a ø63/50 mm mother tube. NKF Telecom, a subsidiary of the DRAKA Group, used the air blowing technology and equipment of the Swiss company Politi to realize the commercial use of the network air blowing technology for the first time. This technology covers long-haul trunk lines, metropolitan area networks and fiber-to-the-home in Europe and the United States.
  • In 1995, former China Ministry of Posts and Telecommunications company cooperated with Swiss company Politi and the United States Dulan Company, for the fist time introduced the world's advanced air blowing cable technology and equipment to China.

The Air Blown Application

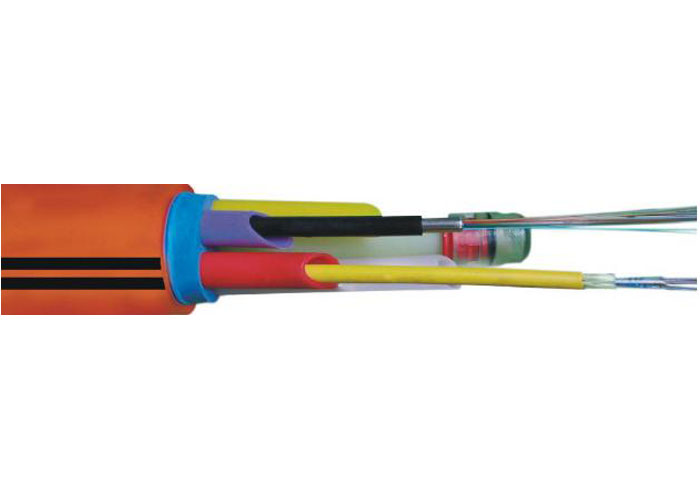

Micro-tubes and Mother tube

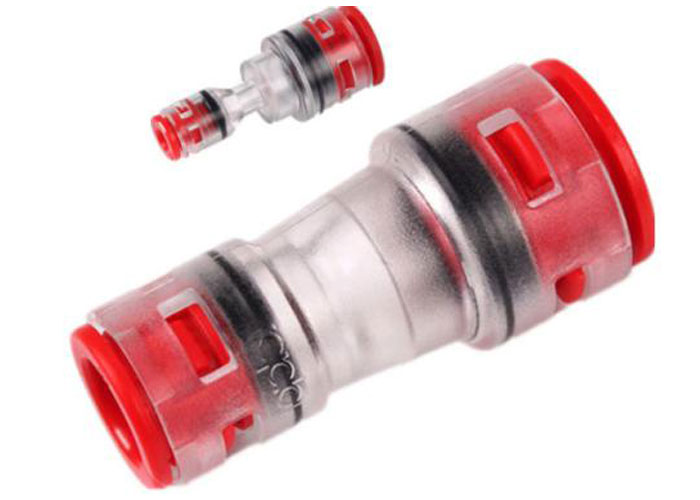

Reducing Microduct Connector

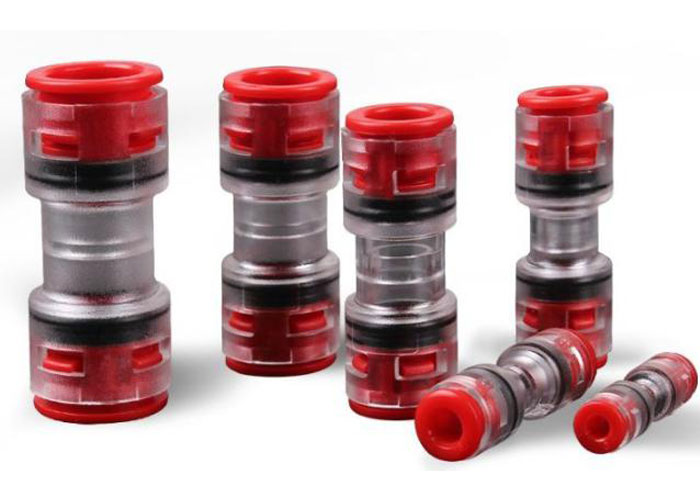

Straight Microduct Connector
Micro-tubes and Mother tube
Reducing Microduct Connector
Straight Microduct Connector

The air blown fiber cable is composed of a combination of micro tubes (bundles), optical fibers (bundles), and blowing fiber devices.The air compressor is used as the power source for the traction fiber bundle, and the fiber bundle is quickly sent to the same micro tube bundle in the micro tube, and different types of fibers (beams) can be mixed and blown in different micro tubes.
To achieve fast installation and improved installation quality, all air-blown fiber cable are equipped with international standard prefabricated connectors on one end.

Technology & Features of Air Blowing Cable
Air Blowing Fiber Optical Cable Machine
Air Blowing Fiber Optical Cable Machine
  •  The Laying methods of Air Blowing cable compare with other Fiber Optical cable, the tension of the Air Blowing Cable during the laying process is relatively uniform and much smaller.
  • The Air Blowing cable laying process is simplified and fast.
  • The Air Blowing cable can lay a long distance in one time. It will reduce the number of joints and reduce the attenuation.
  • The Air blown cable can greatly reduce the number of manholes and hand holes on the pipeline.
  • There is less manpower used in blowing cable laying operations.
  • It is convenient to replace the new type of optical fiber in the future, keep leading in technology and constantly adapt to market needs.
